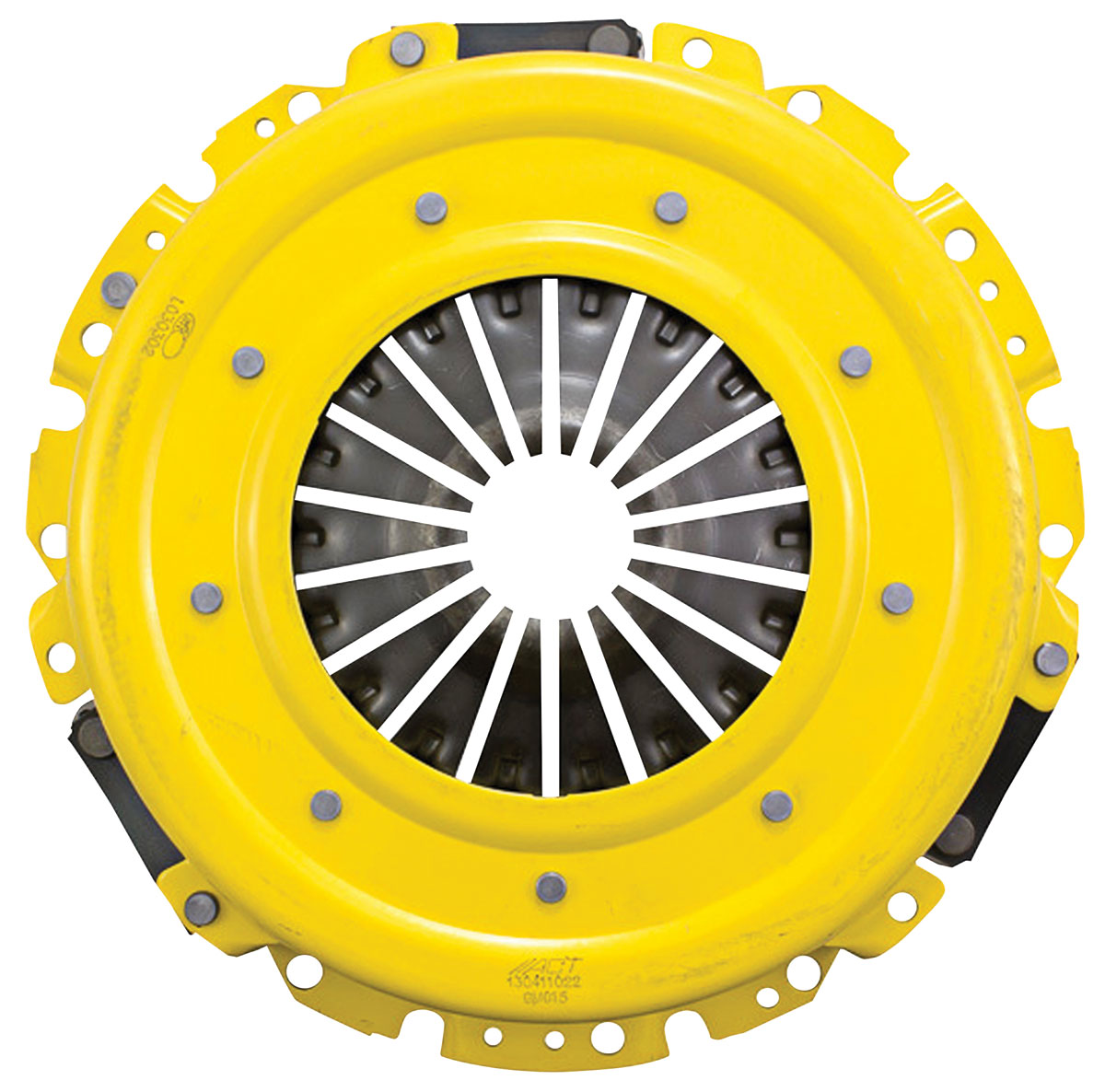

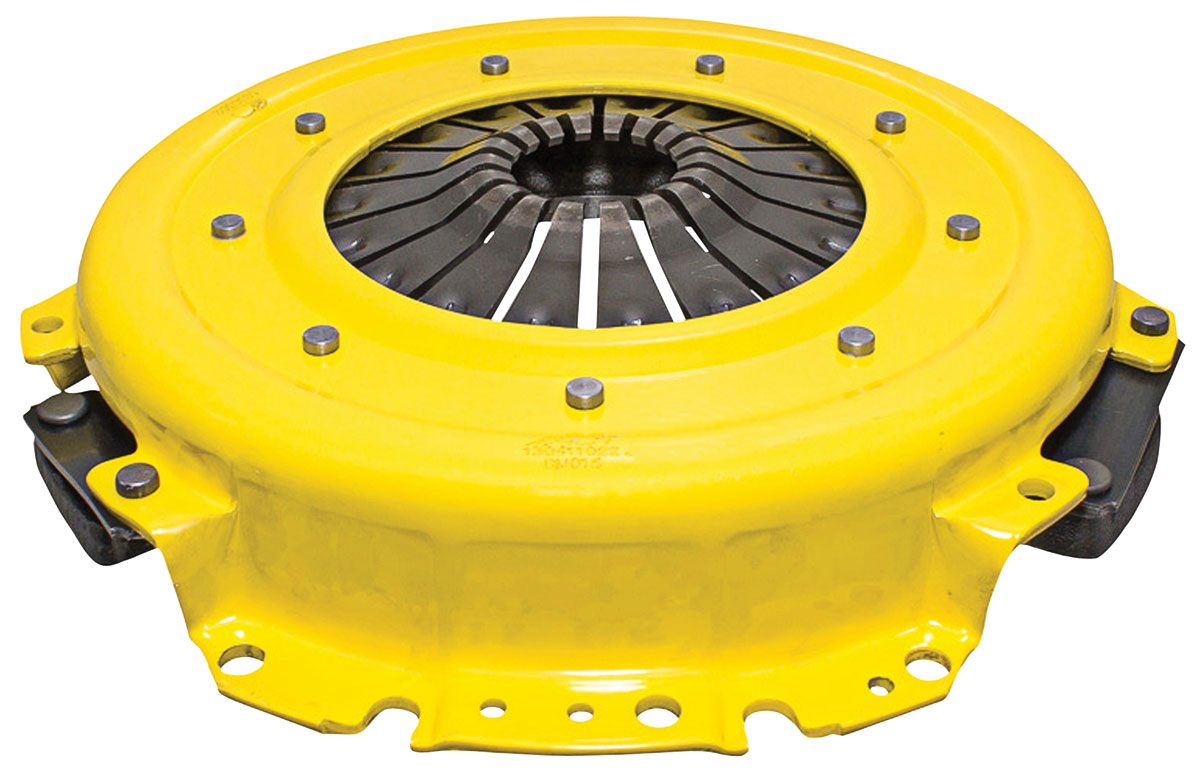

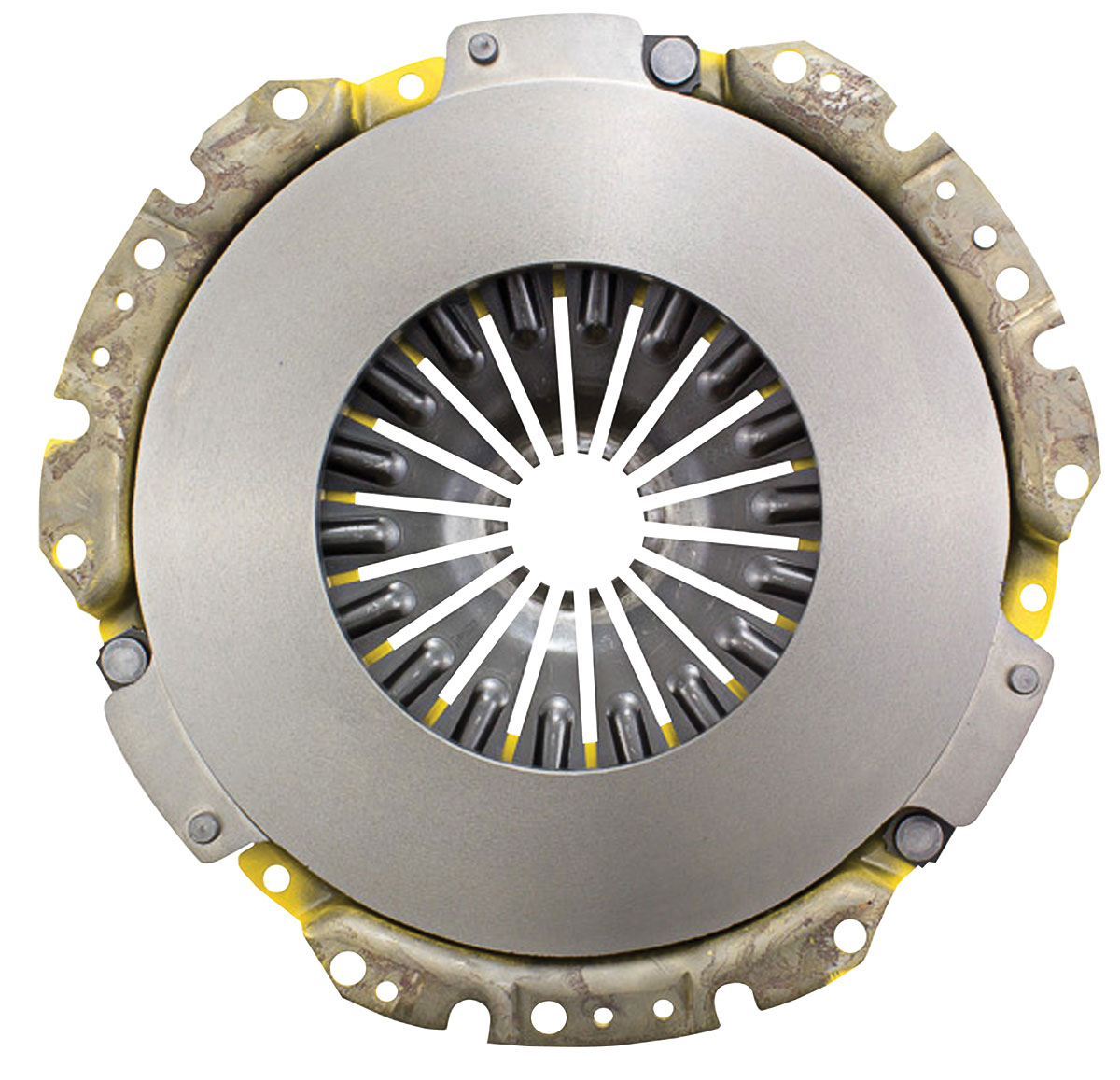

2004-07 Cadillac CTS-V Heavy-Duty Clutch Pressure Plate by ACT®
A heat-treated diaphragm and rigid cover deliver consistent clamping with light-to-moderate pedal effort.
This heavy-duty pressure plate by Advanced Clutch Technology (ACT®) uses a four-stage heat-treated diaphragm and precision cover to maintain clamping force. Each unit is clamp-load tested and computer balanced. It provides positive engagement with light-to-moderate pedal effort.
For 2004-05 Cadillac CTS-V 5.7L and 2006-07 CTS-V 6.0L, use the matched ACT® clutch conversion; the complete kit is SKU #AT10113. The plate is sold separately from the disc and flywheel. LS2, LS3 and LS7 installations require a flat flywheel or the matching "XACT Prolite" flywheel, SKU #AT60585.
Additional manual-transmission applications: 1997-2004 Corvette 5.7L (including 2001-04 Z06); 1998-2002 Camaro Z28/SS and Firebird Formula/Trans Am 5.7L; 2004 GTO 5.7L and 2005-06 GTO 6.0L; 2005-06 SSR 6.0L; 2005-07 Corvette 6.0L; 2008-13 Corvette 6.2L (including 2010-13 Grand Sport); 2006-13 Corvette Z06 and 2013 Corvette 427 7.0L; 2010-15 Camaro SS 6.2L; and 2014-15 Camaro Z/28 7.0L.
Features
• 11-inch / 280 mm clutch size
• Four-stage heat-treated diaphragm
• 100% clamp-load tested
• Computer-balanced pressure plate
• SFI 1.1 certified
Notes
- This item is not eligible for any further discounts or promotional pricing.
- This item is Oversize 2, and is excluded from free ground shipping.
