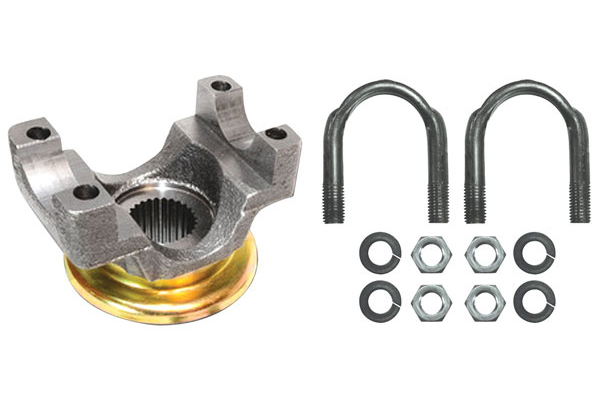

Differential Pinion Yoke (1964–72 Buick, Olds & Pontiac 8.2" 10-Bolt, 27-Spline, 3R Joint)
Replacement yoke includes the matching U-bolt retainers
This pinion yoke fits the matching 1964–72 Buick, Oldsmobile and Pontiac 8.2-inch 10-bolt differential. It has 27 splines and accepts a 3R-series U-joint.
The current 3R04-271X design includes 2-94-58X U-bolts for its revised mounting-hole spacing. The original U-bolts cannot be reused. Pinion nut and washer are not included.
FEATURES
• Buick, Oldsmobile and Pontiac 8.2-inch 10-bolt; matching 1964–72 applications
• 27 splines; 1.170-inch spline diameter
• 3R-series U-joint
• 1.942-inch hub diameter; 1.287-inch through-hole
• 2.866-inch joint-centerline-to-end length
• 2-94-58X U-bolts included; original U-bolts do not fit
• Pinion nut and washer not included
Notes
- U-bolts included, as original u-bolts cannot be reused.
- Pinion nut & washer not included.
