1967 Chevrolet Chevelle/El Camino Small-Block Clutch Pedal & Linkage Kit by RESTOPARTS®
Matched linkage components grouped in one purchase with clutch/brake pedals

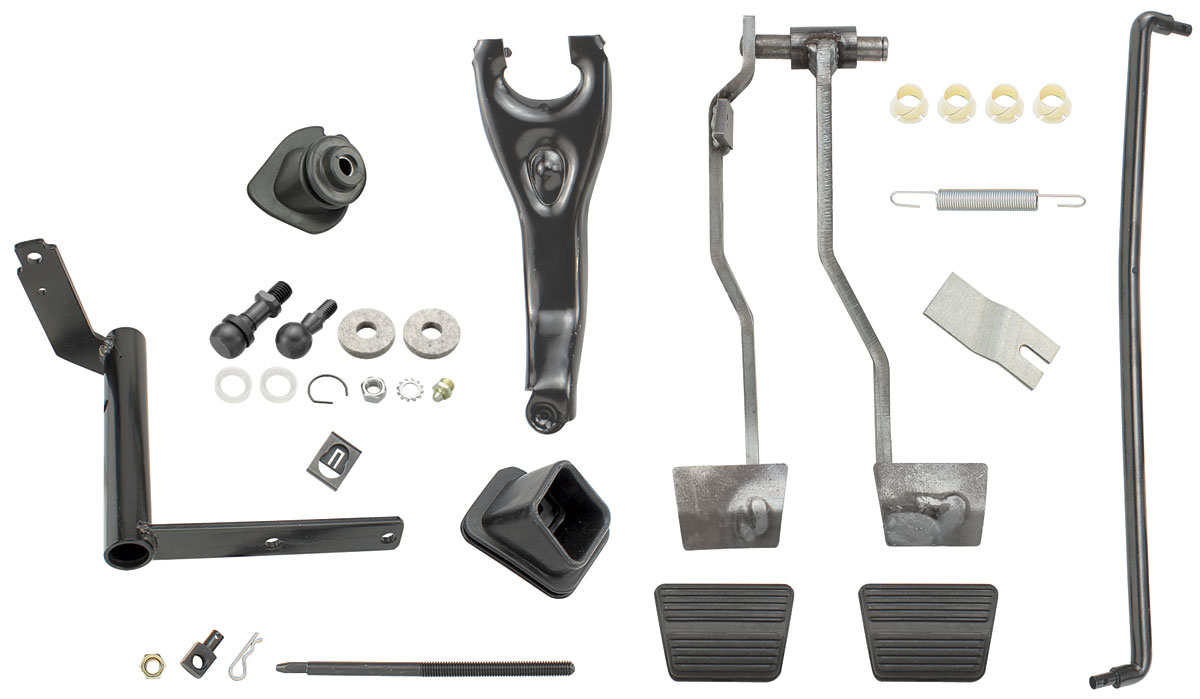

This kit assembled with RESTOPARTS® reproduction bellcrank and linkage components groups the mechanical clutch linkage for 1967 Chevrolet Chevelle/El Camino small-block applications. The kit combines the bellcrank/Z-bar, upper and adjustable lower push rods, frame bracket, ball-stud set, clutch springs, fork boot, firewall boot and three G-shaped retainer clips. The clutch/brake pedal assembly, clutch fork and two pedal pads are also included.
The matched components are supplied together for servicing the linkage or assembling a compatible manual-transmission conversion.
FEATURES
• 1967 Chevrolet Chevelle/El Camino; small-block engine
• Mechanical clutch linkage kit
• 1 × Bellcrank (PZ00807)
• 1 × Bellcrank Ball Stud Set (CH20300)
• 3 × Retainer Clip, "G" Shaped (PZ00792)
• 1 × Clutch Springs (KR00507)
• 1 × Upper Push Rod, Clutch Pedal (CH20282)
• 1 × Lower Push Rod, Clutch Pedal (CH20297)
• 1 × Frame Bracket, Bellcrank (KR00583)
• 1 × Boot, Clutch Fork (CCP0499)
• 1 × Clutch Rod Boot, Firewall (RP00623)
• 1 × Pedals, Clutch/Brake (CH26697)
• 1 × Clutch Fork, 64-77 Chevrolet (PZ00840)
• 2 × Pedal Pad, Brake/Clutch (PZ00013)
• Includes RESTOPARTS® reproduction linkage components
