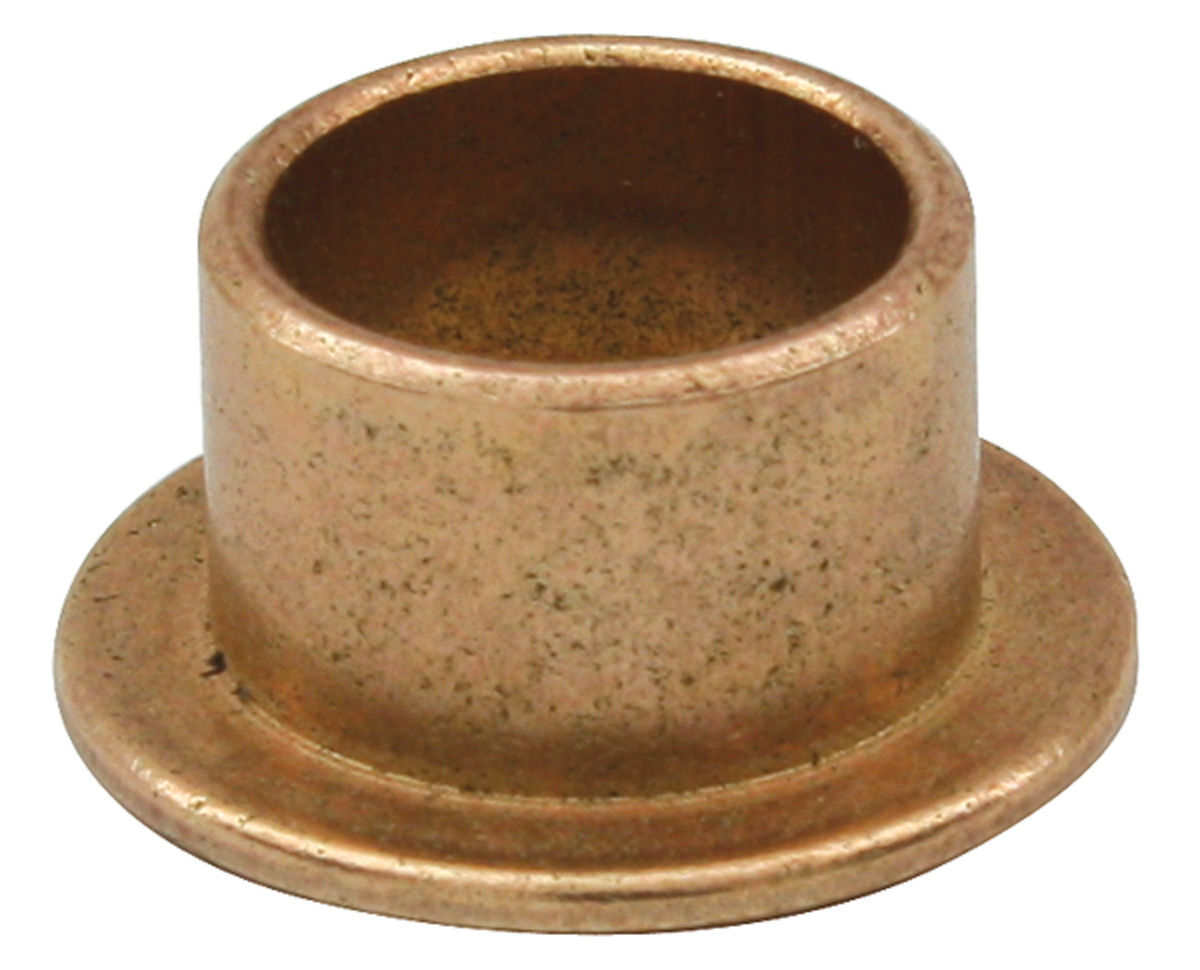

Small Door Hinge Bushing (Multiple GM Models, See Bullets)
Bronze replacement bushing renews the bearing surface around the hinge pin.
This bronze bushing replaces a worn door-hinge bushing at the pivot pin. Wear at this point can create play and contribute to door sag. Match the bushing dimensions to the hinge being serviced and inspect the pin for wear during installation. Sold individually.
• 1961-72 Buick Skylark
• 1963-76 Buick Riviera
• 1970-77 Chevrolet Monte Carlo
• 1964-77 Chevrolet Chevelle
• 1960-69 Chevrolet Corvair
• 1964-77 Chevrolet El Camino
• 1973-77 Pontiac Grand Prix
• 1973 Pontiac GTO
• 1973-74 Pontiac LeMans
• 1973-77 Oldsmobile Cutlass
• Small bronze replacement bushing
• 27/64-inch outside diameter
• 11/32-inch inside diameter
• Sold per each bushing
• Match bushing size to the existing hinge
• 19/32-inch flange diameter; 19/64-inch height
