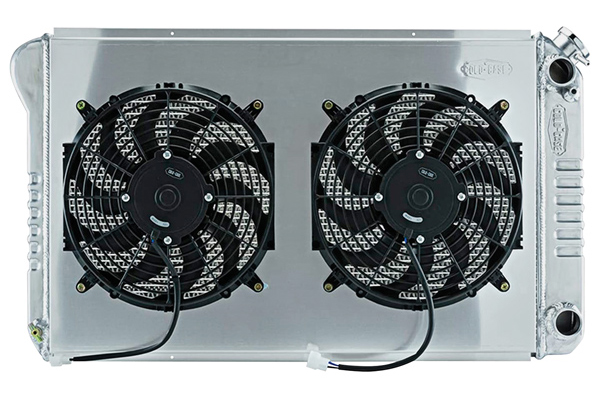

1968-72 GM A-Body LS-Swap Radiator & Dual Electric Fans by Cold-Case®
Dual-flow LS-swap module includes the aluminum radiator, dual fans and fitted aluminum shroud.
This Cold-Case® LS-swap radiator/fan combination fits 1968-72 GM A-Body applications. The GMA546AK 12-inch-fan configuration uses a dual-flow, 100% TIG-welded aluminum radiator with two 1.25-inch tubes, 16 fins per inch, dual 12-inch fans and an aluminum shroud. The dual 12-inch fan package is rated at approximately 3,200 CFM combined airflow. The radiator uses an 18.4 x 28.5-inch core and measures about 18.82 x 34.21 inches overall. The LS-swap radiator is intended for an external transmission cooler; wiring is not included. Cold-Case® also offers a Super Duty version with dual 14-inch fans.
• 1968-72 GM A-Body LS swap
• Dual-flow aluminum radiator, fans and shroud
• GMA546AK: dual 12-in. fans / approx. 3,200 CFM
• Dual 1.25-in. tubes / 16 fins per inch
• 18.4 x 28.5-in. core / approx. 18.82 x 34.21-in. radiator
• External transmission cooler required; wiring not included
Notes
- This item is not eligible for any further discounts or promotional pricing.
- This item is Oversize 3, and is excluded from free ground shipping.
- This item is SPECIAL ORDER and will drop-ship from the manufacturer. While the majority of drop ship orders experience no delays, please be advised that OPGI does not control delivery times.
