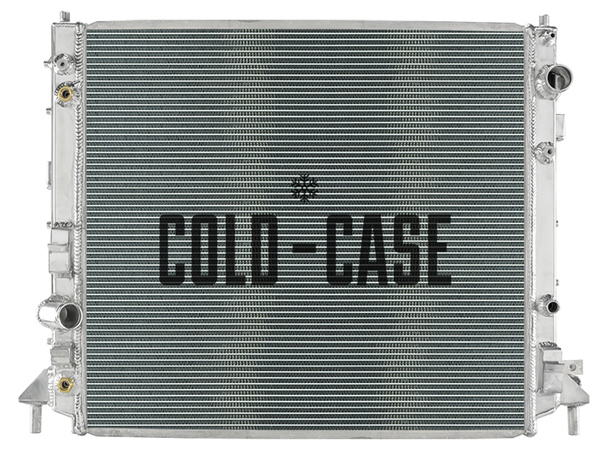

2016-19 Cadillac ATS-V/CTS-V 2-Row Aluminum Radiator by Cold-Case®
Two-row TIG-welded aluminum radiator uses dual 1-inch tubes, 16-FPI corrugated fins and pressure testing.
This Cold-Case® aluminum radiator fits 2016-19 Cadillac ATS-V and CTS-V applications. It uses two 1-inch tubes, 16 fins per inch and 100% TIG-welded aluminum construction with corrugated fins. The core measures approximately 20.4 inches high x 22.6 inches wide with an overall size of roughly 21 x 28.5 x 3 inches. The upper and lower hose connections are approximately 1.33 inches and the cooler connections use snap-lock fittings.
• 2016-19 Cadillac ATS-V & CTS-V
• 2-row aluminum core with dual 1-in. tubes
• 16 fins per inch / corrugated fin design
• Approx. 20.4 x 22.6-in. core / 21 x 28.5 x 3-in. overall
• Approx. 1.33-in. upper/lower hose connections
• 100% TIG-welded / pressure tested
Notes
- This item is not eligible for any further discounts or promotional pricing.
- This item is Oversize 2, and is excluded from free ground shipping.
- This item is SPECIAL ORDER and will drop-ship from the manufacturer. While the majority of drop ship orders experience no delays, please be advised that OPGI does not control delivery times.
