2009-15 Cadillac CTS-V 2-Row Aluminum Radiator by Cold-Case®
Two-row TIG-welded radiator uses dual 1-inch tubes, 16-FPI fins and pressure testing.

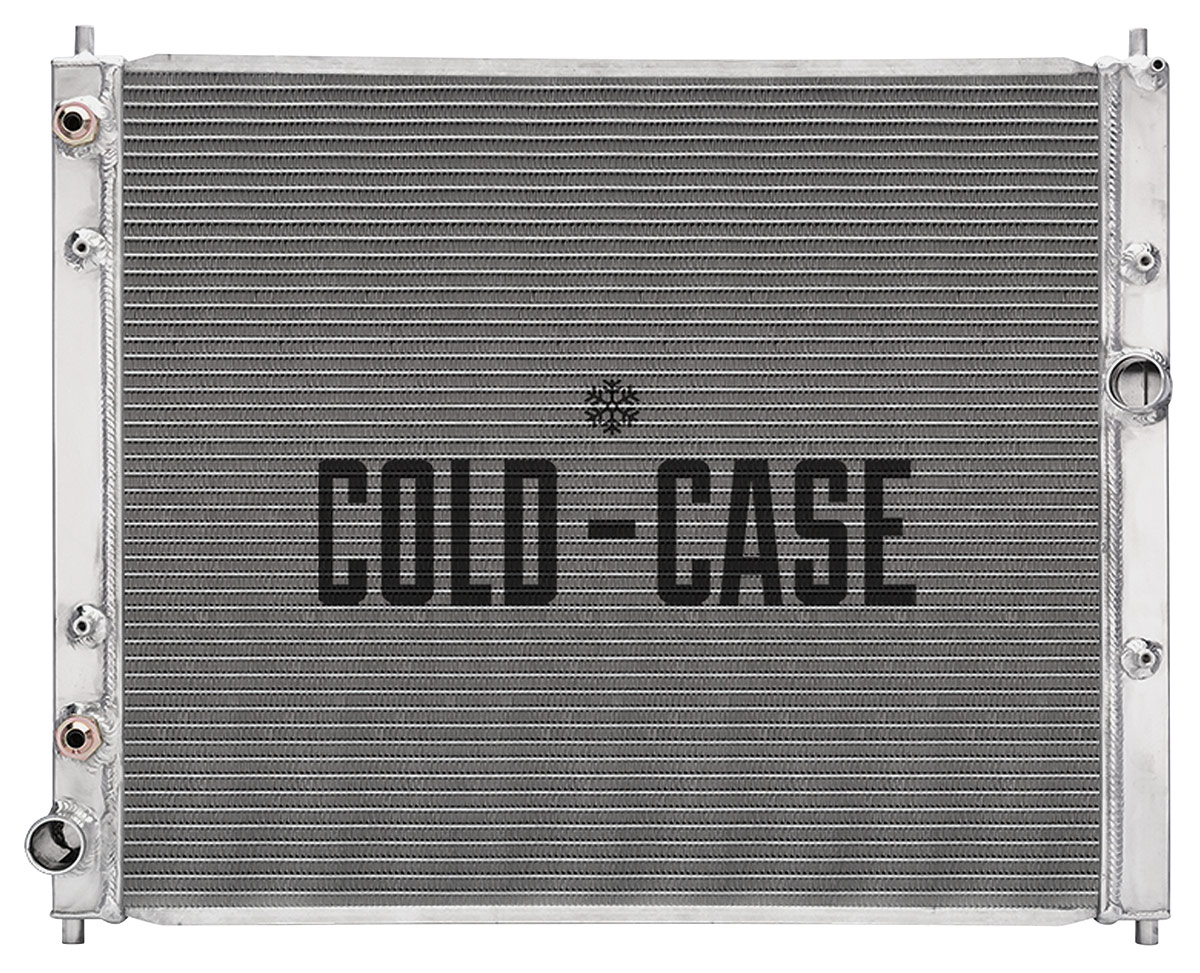

This Cold-Case® aluminum radiator fits 2009-15 Cadillac CTS-V applications. It uses two 1-inch tubes, 16 fins per inch and 100% TIG-welded aluminum construction, with corrugated fins to increase heat-transfer surface area. The core measures 20.38 x 23.5 inches with approximately 21 x 27 x 2.55-inch overall dimensions. Both hose connections are approximately 1.35 inches, and the cooler connections use snap-lock fittings.
• 2009-15 Cadillac CTS-V
• 2-row aluminum core with dual 1-in. tubes
• 16 fins per inch / corrugated fin design
• 20.38 x 23.5-in. core / approx. 21 x 27 x 2.55-in. overall
• Approx. 1.35-in. upper/lower hose connections
• Pressure tested / snap-lock cooler fittings
Notes
- This item is not eligible for any further discounts or promotional pricing.
- This item is Oversize 2, and is excluded from free ground shipping.
- This item is SPECIAL ORDER and will drop-ship from the manufacturer. While the majority of drop ship orders experience no delays, please be advised that OPGI does not control delivery times.
