1968-72 GM A-Body LS-Swap Aluminum Radiator by Cold-Case®
Dual-flow LS-swap radiator uses dual 1.25-inch tubes and is designed for an external trans cooler.

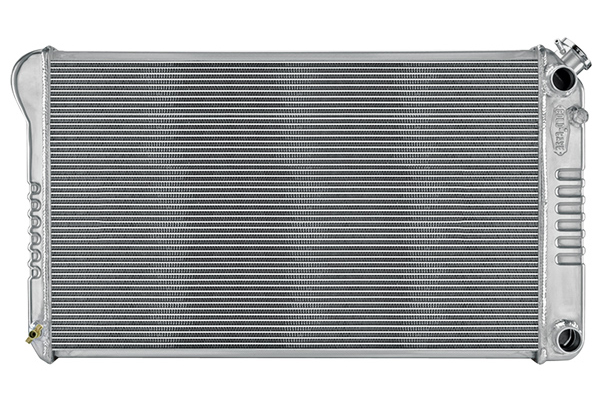

This Cold-Case® GMA546A aluminum radiator is configured for 1968-72 GM A-Body LS swaps. It uses a dual-flow design, 100% TIG-welded aluminum construction, two 1.25-inch tubes, 16 corrugated fins per inch and pressure testing. The core measures approximately 18.4 x 28.5 inches and overall dimensions are about 18.82 x 34.21 inches. The LS-swap configuration is intended for use with an external transmission cooler rather than an internal radiator cooler.
• 1968-72 GM A-Body LS-swap applications
• Dual-flow 100% TIG-welded aluminum radiator
• Dual 1.25-in. tubes / 16 fins per inch
• 18.4 x 28.5-in. core / approx. 18.82 x 34.21-in. overall
• LS-swap hose/flow configuration
• External transmission cooler required
Notes
- These products are warranted against defects in workmanship and materials for the lifetime of ownership, non-transferable. Modifications, abuse, misuse, or unauthorized repair voids all aspects of the warranty.
- This item is not eligible for any further discounts or promotional pricing.
- This item is Oversize 3, and is excluded from free ground shipping.
- This item is SPECIAL ORDER and will drop-ship from the manufacturer. While the majority of drop ship orders experience no delays, please be advised that OPGI does not control delivery times.
