1986–87 Grand National/T-Type Gen 5 Magnum SureFit Complete A/C Kit by Vintage Air®
Electronic comfort control with separate heating and cooling coils for factory-A/C cars.

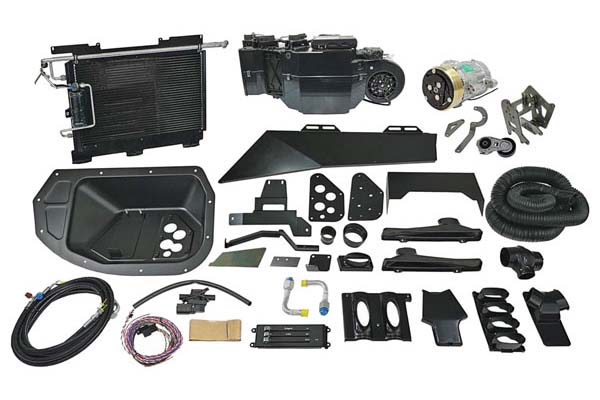

Bring electronic cooling, heating and defrost control to your 1986–87 Grand National/T-Type with factory A/C. The Gen 5 SureFit system combines a Magnum blower with separate high-density aluminum A/C and heater coils. Microprocessor controls replace cables and vacuum connections, providing variable blower speed and blended dash, floor and defrost airflow. Sealed blend doors provide quick temperature changes, while rubber well-nut mounts reduce vibration transfer. An OEM-style block expansion valve, molded case, removable coil-service covers, powder-coated steel brackets and built-in diagnostics support dependable operation and service. The kit includes a bolt-in LED-backlit control panel, duct hose, wiring, stamped-steel firewall cover, steel firewall water drip tray, mounting hardware and installation instructions. Underhood equipment includes the compressor and mounting bracket, condenser and brackets, refrigerant lines, receiver-drier and fittings. A compact 7B10 compressor and matching bracket fit the 1986–87 turbo-engine layout. Glove-box modification reduces storage space.
• Manufacturer part: 964451
• Fitment: 1986–87 Grand National/T-Type with factory A/C
• System: Gen 5 SureFit; Magnum blower
• Kit type: Complete system
• Separate high-density aluminum heating and A/C coils
• Variable blower speed; dash/floor/defrost blend
• Electronic controls; no control cables or vacuum connections
• Block-type expansion valve and sealed blend doors
• Rubber well-nut isolation and powder-coated steel brackets
• Removable coil-service covers
• Electronic control panel, wiring, duct hose and firewall cover included
• Glove-box modification required; reduced capacity
• Compressor/bracket, condenser/brackets, refrigerant lines, drier, fittings and hardware included
• Polished/chrome compressor and trinary switch are optional upgrades
• Compact 7B10 compressor with turbo-engine mounting bracket
• LED-backlit bolt-in control panel
• Steel firewall water drip tray
