Disc Brake Set, Rr, Wilwood Superlite 4R, GM 10/12-Bolt w/OE C-Clip, 12.88" Rtr

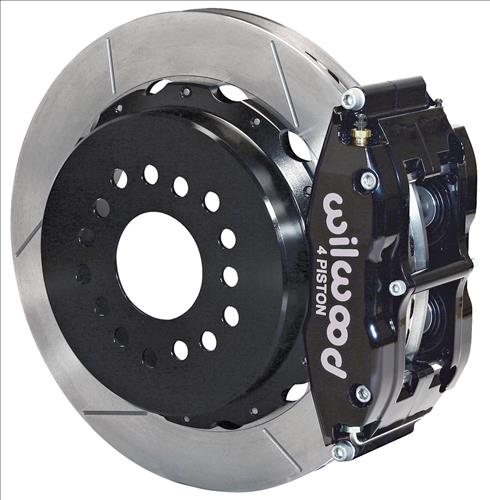

GM 12-Bolt C-Clip Axles Superlite 4R Rear Disc Brake Kit (12.88" Rotors & 4-Piston Calipers) by Wilwood®

12.88-inch rotors and 4-piston calipers; internal parking brake included; cables separate

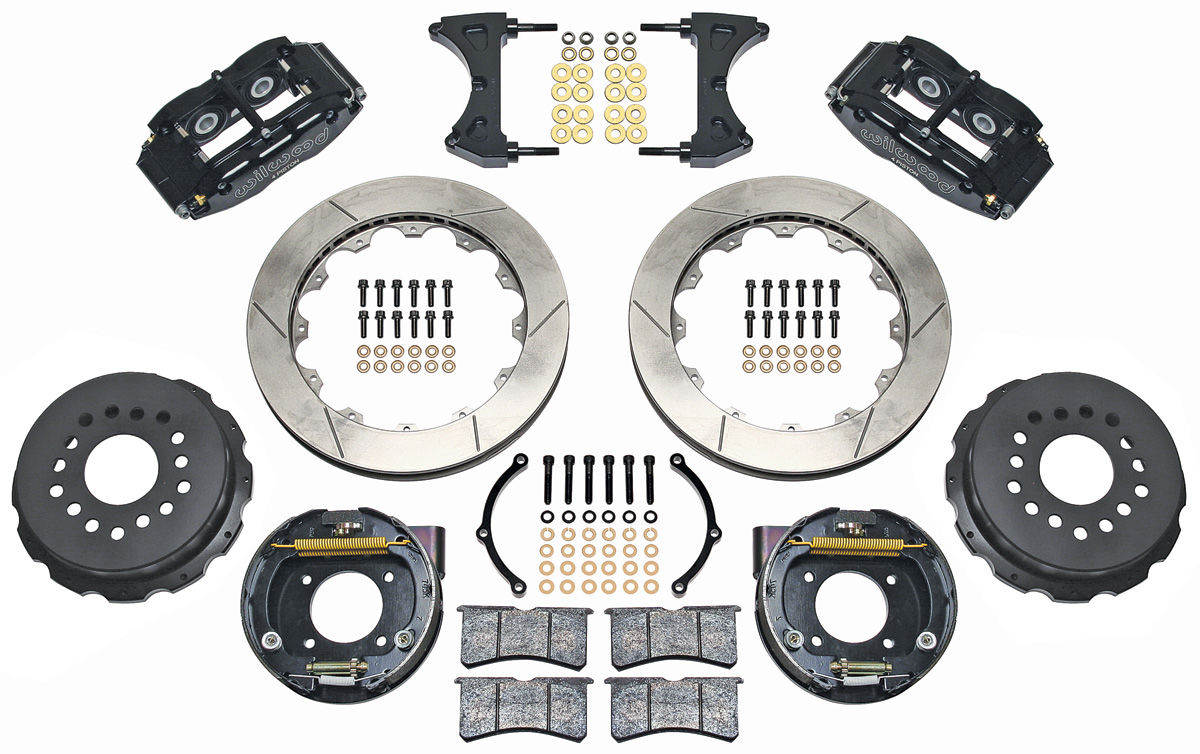

This Wilwood® Superlite 4R rear kit pairs 12.88-inch rotors with four-piston calipers. Included are two vented iron rotor rings with separate aluminum hats, two calipers, BP-10 pads, internal parking-brake assemblies, brackets, register adapters, shims, spacers and hardware. Choose black or red powder-coated calipers with slotted or drilled-and-slotted rotors. Requires factory C-clip axles with the GM 12-bolt flange; aftermarket C-clip eliminators are excluded. Confirm the 2.81-inch axle offset and flange dimensions. Hydraulic hoses/fittings and parking-brake cables/adapters are sold separately. Use Wilwood’s 17-inch wheel-clearance template; wheel diameter alone does not confirm fit. No booster or master cylinder is supplied.

• Rotors: 12.88-inch diameter × 1.10-inch thick; slotted or drilled-and-slotted • Calipers: 4-piston Superlite 4R; black or red powder-coated • Included pads: BP-10 • Wheel check: 17-inch template; verify barrel and spoke clearance • Booster / master cylinder: not included • Axle offset: 2.81 inches; this is flange geometry, not a wheel-track change • Requires factory C-clip axles with the GM 12-bolt flange; aftermarket C-clip eliminators are excluded. • Hydraulic hoses/fittings and parking-brake cables/adapters: not included • Parking brake: internal drum-shoe assemblies included
