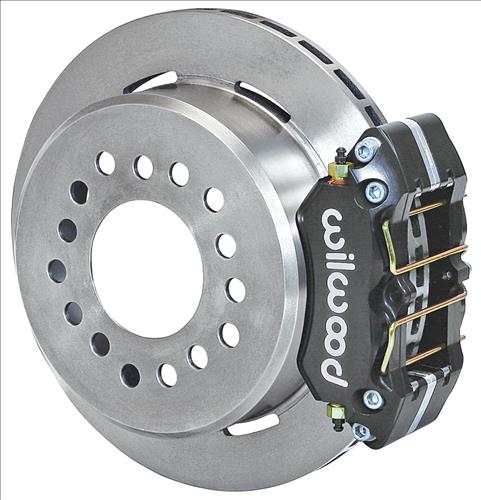

GM 12-Bolt C-Clip Axles Dynapro Low-Profile Rear Disc Brake Kit (11" Rotors & 4-Piston Calipers) by Wilwood®
11-inch rotors and 4-piston calipers; internal parking brake included; cables separate

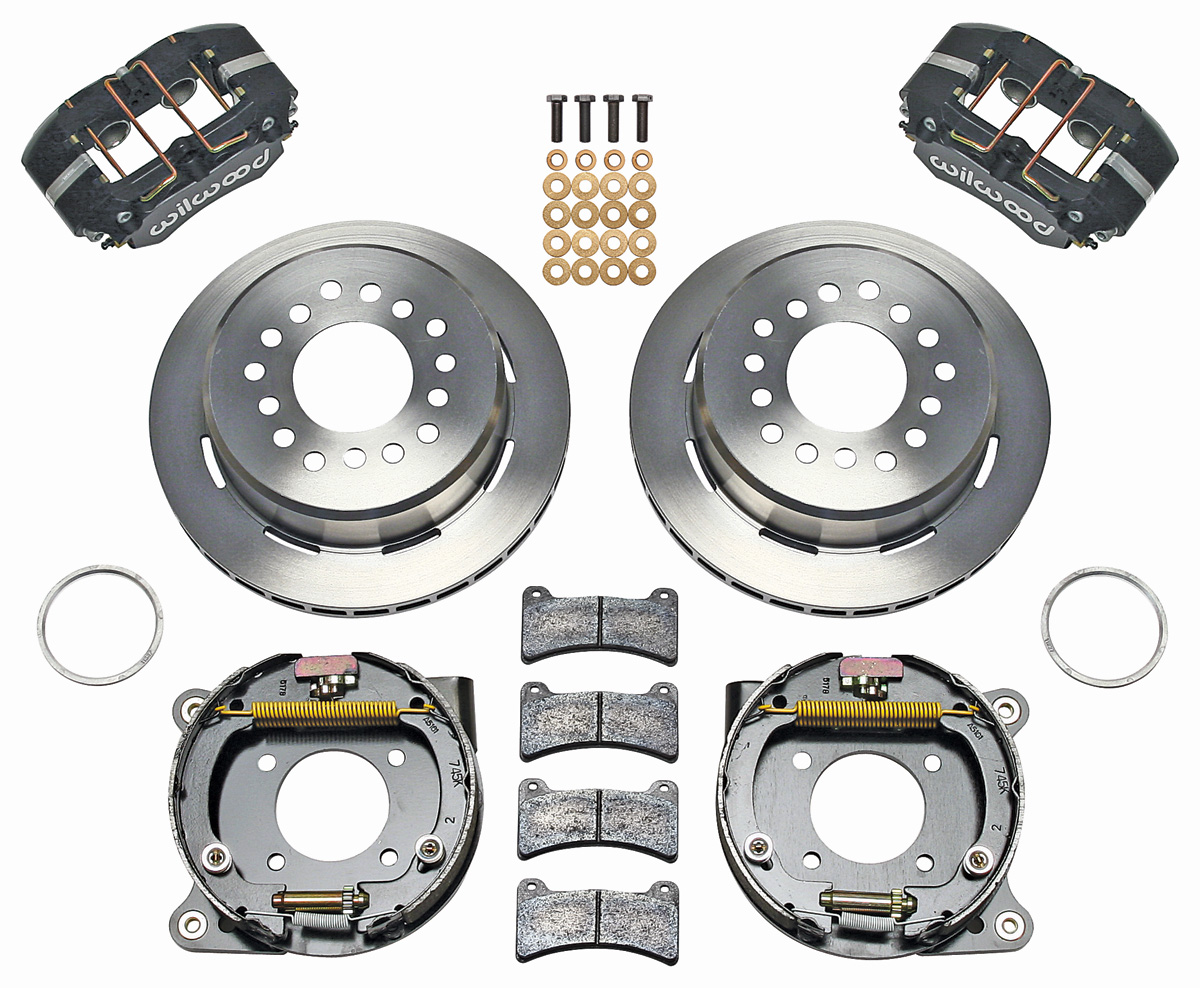

This Wilwood® Dynapro Low-Profile rear kit pairs 11-inch rotors with four-piston calipers. The package includes two one-piece vented iron rotor/drums, two aluminum calipers, BP-10 pads, internal parking-brake assemblies, mounting brackets, register adapters, shims and fastening hardware. Choose black or red powder-coated calipers with plain-face or drilled-and-slotted rotors. Uses the GM 12-bolt flange with factory C-clips; aftermarket C-clip eliminators are excluded. Confirm the 2.75–2.81-inch axle offset and flange dimensions. Hydraulic hoses/fittings and parking-brake cables/adapters are sold separately. Use Wilwood’s 14-inch wheel-clearance template; wheel diameter alone does not confirm fit. No booster or master cylinder is supplied.
• Rotors: 11-inch diameter × .81-inch thick; plain-face or drilled-and-slotted
• Calipers: 4-piston Dynapro Low-Profile; black or red powder-coated
• Included pads: BP-10
• Wheel check: 14-inch template; verify barrel and spoke clearance
• Booster / master cylinder: not included
• Axle offset: 2.75–2.81 inches; this is flange geometry, not a wheel-track change
• Uses the GM 12-bolt flange with factory C-clips; aftermarket C-clip eliminators are excluded.
• Hydraulic hoses/fittings and parking-brake cables/adapters: not included
• Parking brake: internal drum-shoe assemblies included
• Axle flange: maximum 6.61-inch diameter with 0.050-inch × 45-degree chamfer; compare center register and bolt pattern to instructions
