Disc Brake Set, Ft, Wilwood Tactical Xtreme, 02-17 Escalade/EXT, 2/4WD, 16" Rtrs

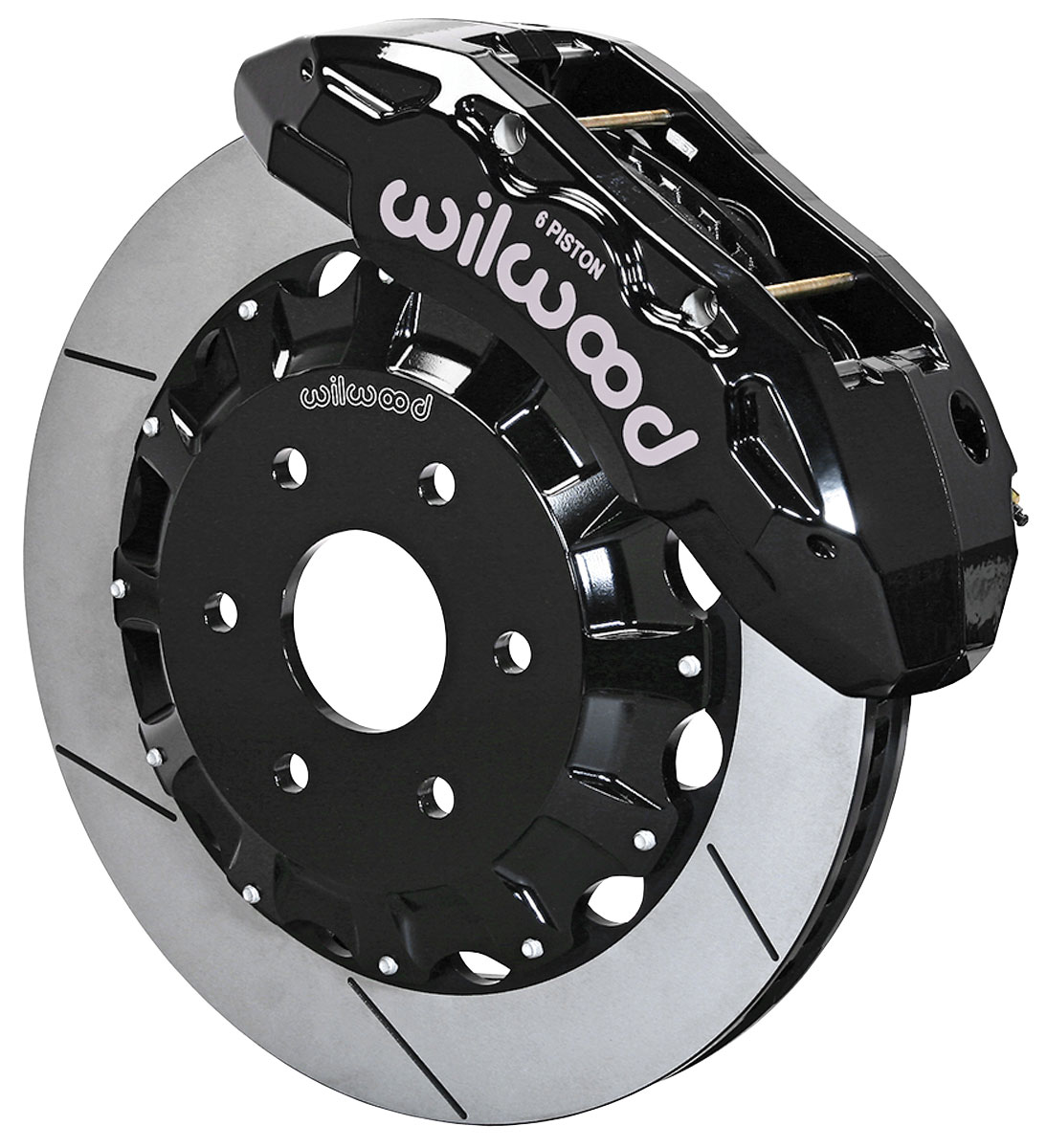

2002-17 Cadillac Escalade TX6R Front Disc Brake Kit (16" Rotors & 6-Piston Calipers) by Wilwood®

16-inch rotors and 6-piston calipers; retains original hubs and ABS

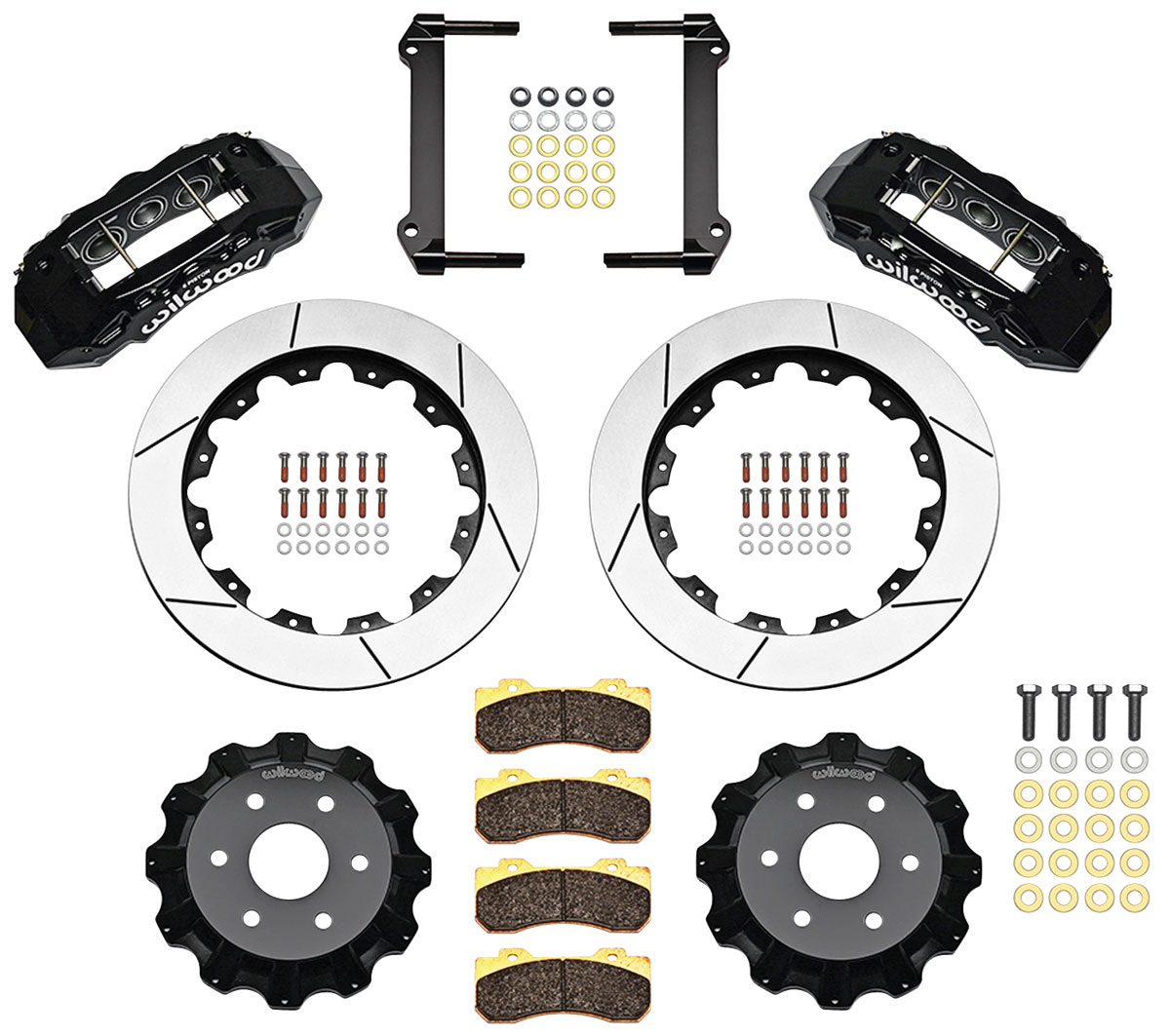

This Wilwood® TX6R front kit pairs 16-inch rotors with six-piston calipers. It includes two vented iron rotor rings with separate hats, two aluminum calipers, pads, caliper brackets, shims and hardware. Choose black or red powder-coated calipers with slotted rotors. Pads are BP-22 (DS-1083 permits BP-Q substitution). The original hubs, bearings, master cylinder and ABS are retained. For listed six-lug Escalade applications with iron/steel or aluminum spindles. Flex hoses are sold separately. Use Wilwood’s 20-inch wheel-clearance template; wheel diameter alone does not confirm fit. No booster or master cylinder is supplied.

• Rotors: 16-inch diameter × 1.38-inch thick; slotted • Calipers: 6-piston TX6R; black or red powder-coated • Included pads: BP-22 (DS-1083 permits BP-Q substitution) • Wheel check: 20-inch template; verify barrel and spoke clearance • Booster / master cylinder: not included • Hoses sold separately: 220-8998 for 2002–06; 220-10979 for 2007–17 • Hats: aluminum, 6 × 5.50-inch wheel bolt pattern • Compatible listed spindle materials: iron/steel or aluminum
