1978-88 GM G-Body C5/C6 Front Brake Conversion Hub & Bracket Kit by UMI Performance®
1978-88 GM G-Body C5/C6 Brake Conversion Hubs, Brackets, Bearings & Seals

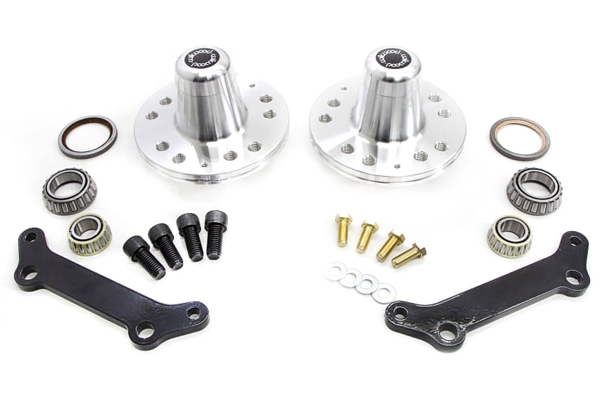

Adapt compatible C5/C6 Corvette front brake components to 1978-88 GM G-Body spindles with UMI Performance®’s 304647 hub and bracket kit. The package supplies laser-cut conversion brackets, US-made aluminum hubs, bearing cups and cones, and seals. The hubs support 5 x 4-1/2-inch and 5 x 4-3/4-inch bolt patterns and locate the brake rotor without changing front track width. C5/C6 calipers, abutment brackets, rotors, pads and brake lines are required to complete the brake installation; wheel studs must also be obtained separately. UMI also identifies Wilwood® SLC56 caliper compatibility. The installation requires cutting and drilling and does not fit Blazer spindles. C5 brakes require at least 17-inch wheels, while C6 brakes require at least 18-inch wheels; verify the actual wheel profile before purchase.
• Fits compatible 1978-88 GM G-Body spindles; excludes Blazer spindles
• Includes aluminum hubs, conversion brackets, bearing cups/cones and seals
• Dual bolt patterns: 5 x 4-1/2 inches and 5 x 4-3/4 inches
• Front track width retained; cutting/drilling required
• C5/C6 calipers, abutments, rotors, pads and brake lines required separately
• Wheel studs not included; Also compatible with Wilwood® SLC56 calipers
• Minimum wheel diameter: C5 17 inches; C6 18 inches; verify clearance
