1977 Chevelle/Malibu & El Camino Color Wiring Diagram, Laminated, 11x17 Inches
Factory wire colors and tracer markings make circuits easier to follow during electrical repairs.

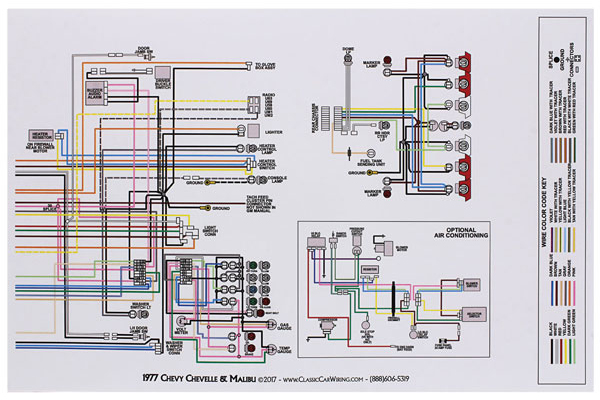

This laminated color wiring diagram lays out the basic electrical system for a 1977 Chevelle/Malibu & El Camino. Factory wire colors and tracer markings help identify circuits when tracing wiring or checking repairs. The 11x17-inch format provides a convenient reference for the engine, lights, instruments and under-dash wiring. It shows both the indicator-light dash and optional full-gauge dash. Optional power-accessory circuits are not included.
• 1977 Chevelle/Malibu & El Camino wiring reference
• 11x17-inch laminated color diagram
• Factory wire colors and tracer markings
• Engine, lighting and under-dash circuit coverage
• Indicator-light and optional full-gauge dash shown
• Optional power-accessory circuits are excluded
