1976 Chevelle Color Wiring Diagram, 11 x 17 Inches
Factory wire colors and a laminated shop layout make circuit tracing and troubleshooting easier.

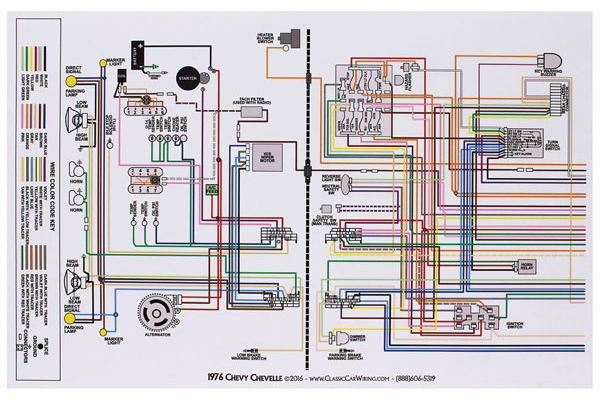

This laminated full-color wiring diagram helps you trace circuits and troubleshoot the electrical system in your 1976 Chevelle. Factory wire colors and applicable tracer markings help you identify connections during diagnosis, wiring repairs or harness installation. The large 11 x 17-inch layout keeps the engine-bay, lighting, under-dash, starting, ignition and instrument circuits easy to follow. Two sheets placed side by side show the main vehicle diagram.
• 1976 Chevelle wiring circuits
• Factory wire colors and applicable tracer markings
• Full-color layout for circuit tracing and troubleshooting
• Laminated 11 x 17-inch format
• Two sheets placed side by side show the main vehicle diagram
