1965 Oldsmobile Cutlass & F-85 Color Wiring Diagram, 11 x 17 Inches
Factory wire colors and large, laminated diagrams make electrical troubleshooting easier.

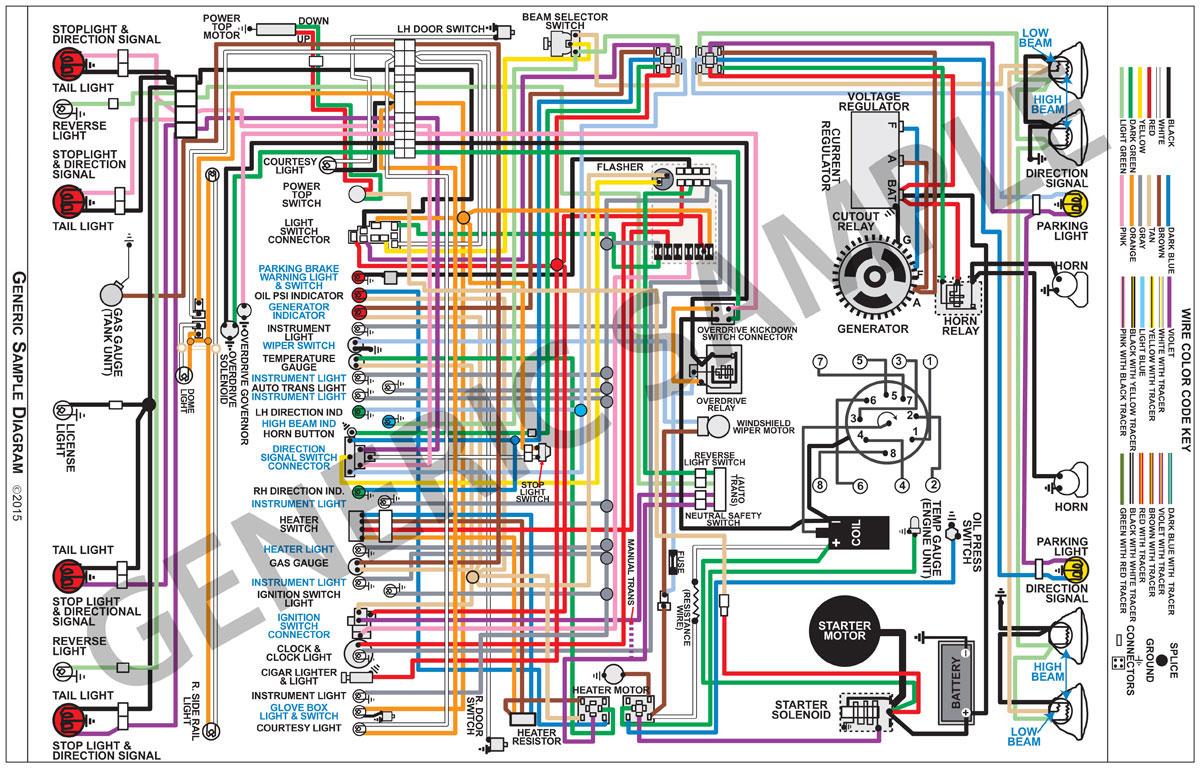

This full-color wiring diagram makes it easier to follow circuits and troubleshoot electrical problems in your 1965 Oldsmobile Cutlass & F-85. Factory wire colors and tracer markings help you identify wiring from the engine compartment to the dash and lights. Coverage includes starting, ignition and instrument circuits. The large 11 x 17-inch format keeps circuit details easy to read, and lamination protects the diagram during shop use.
• 1965 Oldsmobile Cutlass & F-85 electrical circuits
• Factory wire colors and applicable tracer markings
• Engine-compartment, under-dash and lighting wiring
• Starting, ignition and instrument circuits
• Full-color 11 x 17-inch laminated diagram
