Lokar

Valley Plate, Lokar, Gen IV LS, w/ Oil Fill Tube

Free Shipping!
Part# : CH34262
Mfg#: GMLS2002B
Sold As: Each
Ship Size: Standard
$483.99
List Price: $532.95
You Save $48.96

Vehicle Specific View fitment for 62 models
Add To Wishlist

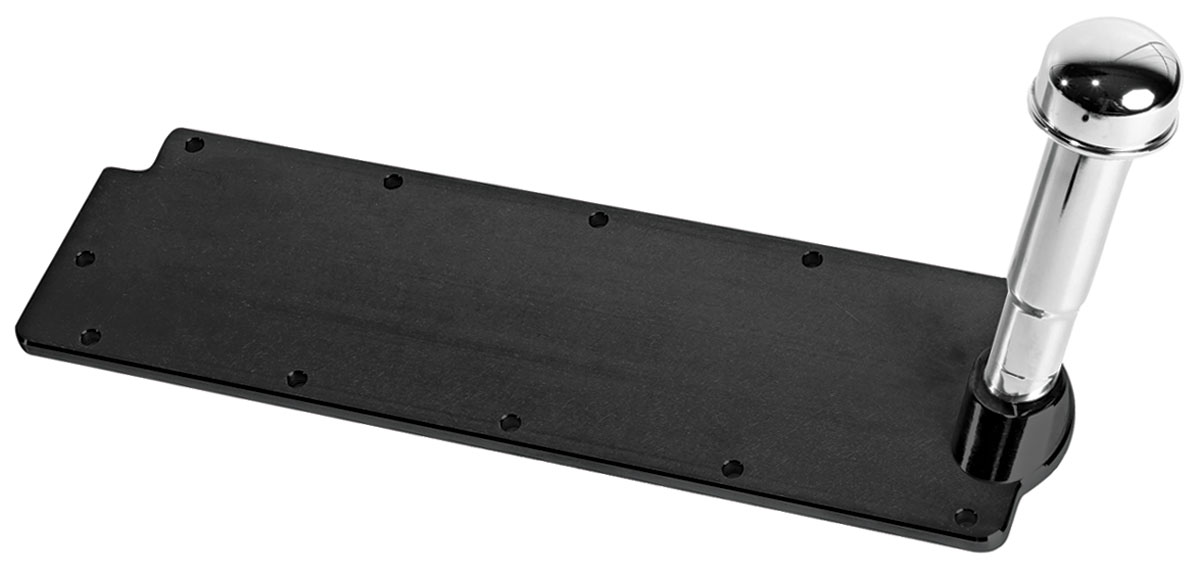

Lokar Oil Fill Valley Plate, Gen IV LS, Driver/Passenger Side, Machined/Black

Billet aluminum valley plate with chrome oil fill tube, breather cap and DOD passage block-offs

Combine classic engine styling with modern LS performance using this Lokar LS Classic Series oil fill valley plate. Designed for Gen IV GM LS engines, this replacement valley cover is precision CNC-machined from 3/8" billet aluminum and replaces the factory 11-bolt valley pan. An OEM-style chrome oil fill tube with a push-in breather cap provides a traditional appearance while allowing convenient engine oil filling. Available with the filler tube angled toward either the driver or passenger side, each configuration is offered in a natural machined aluminum finish or a semi-gloss black powder-coated finish to complement your engine compartment. The underside of the valley plate features integral O-ring bosses that block off the factory Displacement on Demand (DOD) oil passages, eliminating the need for a separate DOD passage block-off kit. Each assembly includes the necessary O-rings, valley plate gasket, stainless steel mounting hardware and an oil pressure sensor relocation adapter. Installation requires relocating the factory oil pressure sensor using the included adapter. The oil fill breather cap also provides crankcase ventilation, making this valley plate a functional addition to compatible Gen IV LS engine builds and conversions.

Features • Genuine Lokar LS Classic Series oil fill valley plate • Designed for compatible Gen IV GM LS engines • Replaces factory 11-bolt valley pan • Precision CNC-machined from 3/8" billet aluminum • Available in machined aluminum or semi-gloss black finishes • Driver-side or passenger-side oil fill tube orientation • Includes OEM-style chrome oil fill tube • Includes push-in oil fill breather cap • Integral O-ring bosses block factory DOD oil passages • Eliminates need for separate DOD passage block-off kit • Includes valley plate gasket and sealing O-rings • Includes stainless steel mounting hardware • Includes oil pressure sensor relocation adapter • Breather cap provides crankcase ventilation • Designed for LS engine conversions and custom builds

Notes

  • This item is not eligible for any further discounts or promotional pricing.
3
This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only. Learn More
We aim to provide accurate and complete product information. If you notice anything incorrect, missing, or unclear, please let us know.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1982 Buick Grand National Gen IV
1984–1987 Buick Grand National Gen IV
1976–1987 Buick Regal Gen IV
1978–1987: Gen IV
1963–1976 Buick Riviera Gen IV
1961–1972 Buick Skylark Gen IV
1983–1986 Buick T-Type Gen IV
1938–1993 Cadillac 60 Special Gen IV
2013–2019 Cadillac ATS Gen IV
1965–1976 Cadillac Calais Gen IV
2003–2019 Cadillac CTS Gen IV
1959–2005 Cadillac DeVille Gen IV
1953–2002 Cadillac Eldorado Gen IV
1999–2000 Cadillac Escalade Gen IV
2002–2023 Cadillac Escalade Gen IV
2002–2013 Cadillac Escalade EXT Gen IV
1965–1996 Cadillac Fleetwood Gen IV
1936–1951 Cadillac Series 60 Gen IV
1946–1964 Cadillac Series 60 Fleetwood
1936–1951 Cadillac Series 61 Gen IV
1937–1976 Cadillac Series 62 Gen IV
1936–1951 Cadillac Series 63 Gen IV
1937–1938 Cadillac Series 65 Gen IV
1936–1942 Cadillac Series 67 Gen IV
1936–1937 Cadillac Series 70 Gen IV
1940 Cadillac Series 72 Gen IV
1936–1942 Cadillac Series 75 Gen IV
1946–1964 Cadillac Series 75 Gen IV
1946–1964 Cadillac Series 75 Fleetwood
1976–2004 Cadillac Seville Gen IV
2005–2011 Cadillac STS Gen IV
2004–2009 Cadillac XLR Gen IV
1947–1955 Chevrolet Advance Design
1969–1994 Chevrolet Blazer Gen IV
1960–1987 Chevrolet C10 Gen IV
1960–1987 Chevrolet C20 Gen IV
1960–1987 Chevrolet C30 Gen IV
1964–1977 Chevrolet Chevelle Gen IV
1960–1969 Chevrolet Corvair Gen IV
1961–1965 Chevrolet Corvair 95 FC Gen IV
1959–1960 Chevrolet El Camino Gen IV
1964–1987 Chevrolet El Camino Gen IV
1978–1987: Gen IV
1960–1987 Chevrolet K10 Gen IV
1960–1987 Chevrolet K20 Gen IV
1977–1987 Chevrolet K30 Gen IV
1978–1983 Chevrolet Malibu Gen IV
1997–2022 Chevrolet Malibu
1970–1988 Chevrolet Monte Carlo 1970–1977: Gen IV
Gen IV
1978–1988: Gen IV
1995–2007 Chevrolet Monte Carlo Gen IV
1960–1991 Chevrolet Suburban Gen IV
1955–1959 Chevrolet Task Force Gen IV
1955–1959 GMC Blue Chip Gen IV
1960–1987 GMC C15/C1500 Gen IV
1960–1987 GMC C25/C2500 Gen IV
1960–1987 GMC C35/C3500 Gen IV
1978–1987 GMC Caballero Gen IV
1970–1991 GMC Jimmy Gen IV
1960–1987 GMC K15/K1500 Gen IV
1960–1987 GMC K25/K2500 Gen IV
1977–1987 GMC K35/K3500 Gen IV
1947–1955 GMC New Design Gen IV
1971–1977 GMC Sprint Gen IV
1960–1991 GMC Suburban
1961–1988 Oldsmobile Cutlass 1961–1977: Gen IV
Gen IV
1978–1988: Gen IV
1958–1986 Pontiac Bonneville Gen IV
1959–1977: Gen IV
1978–1986: Gen IV
1959–1977 Pontiac Catalina Gen IV
1962–1987 Pontiac Grand Prix 1962–1977: Gen IV
Gen IV
1978–1987: Gen IV
1964–1973 Pontiac GTO Gen IV
1961–1981 Pontiac LeMans 1961–1973: Gen IV
Gen IV
1961–1970 Pontiac Tempest Gen IV
