Intake Manifold, Edelbrock Victor, Pontiac, 4150 Flange

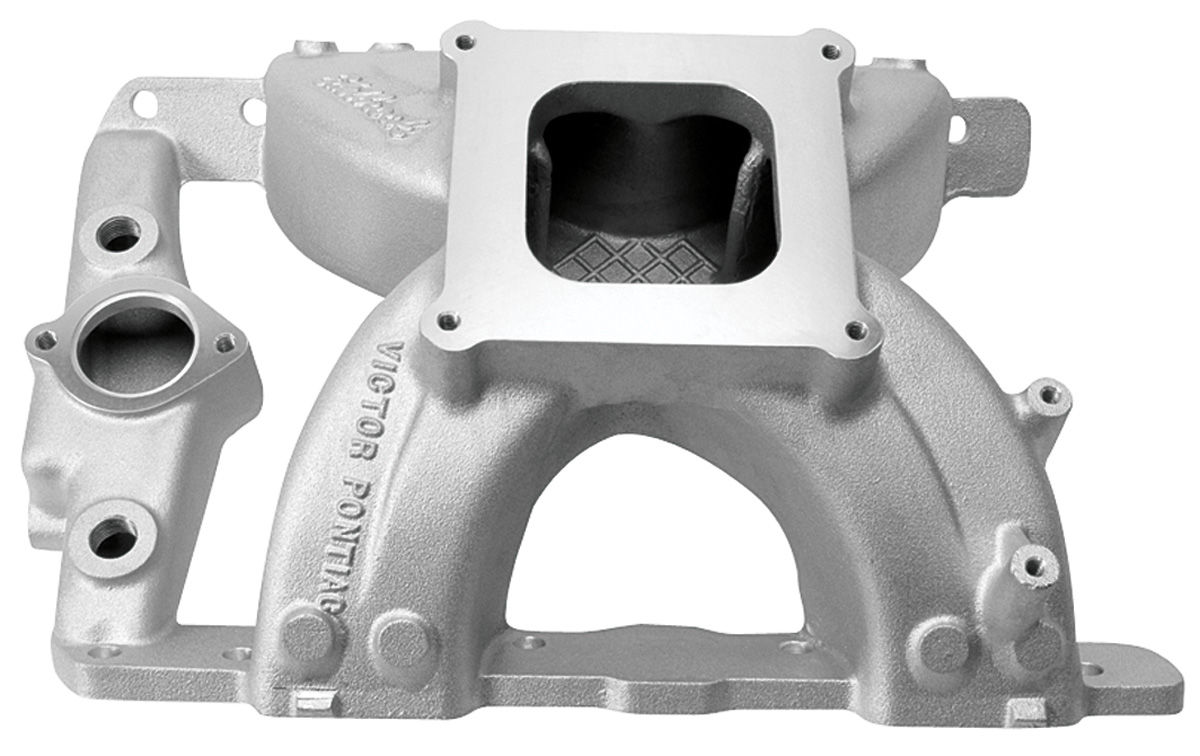

Pontiac 389–455 V8 Victor 4150 Single-Plane Intake Manifold by Edelbrock®

Competition single-plane aluminum manifold is designed for 3,500–7,500 RPM Pontiac V8 operation.

This Edelbrock® Victor single-plane intake manifold is designed for traditional Pontiac 389–455 V8 engines with a Holley 4150-style four-barrel carburetor. The tall intake runners and enlarged common plenum support 3,500–7,500 RPM engine combinations. The natural-finish aluminum manifold has approximately 7.70-inch overall height and intake ports approximately 1.08 × 2.10 inches, making head-port alignment and hood clearance important. Edelbrock recommends its #7280 intake gasket. This is a 4150-flange version; do not substitute specifications from the distinct Victor 4500 manifold.

• Pontiac 389–455 V8 competition intake • 3,500–7,500 RPM operating range • Single-plane aluminum manifold • Holley 4150-style four-barrel flange • Approximately 7.70-inch manifold height • Edelbrock #7280 intake gasket recommended
