Intake Manifold, Edelbrock, Victor Jr, SB Chevy, 1" Tall

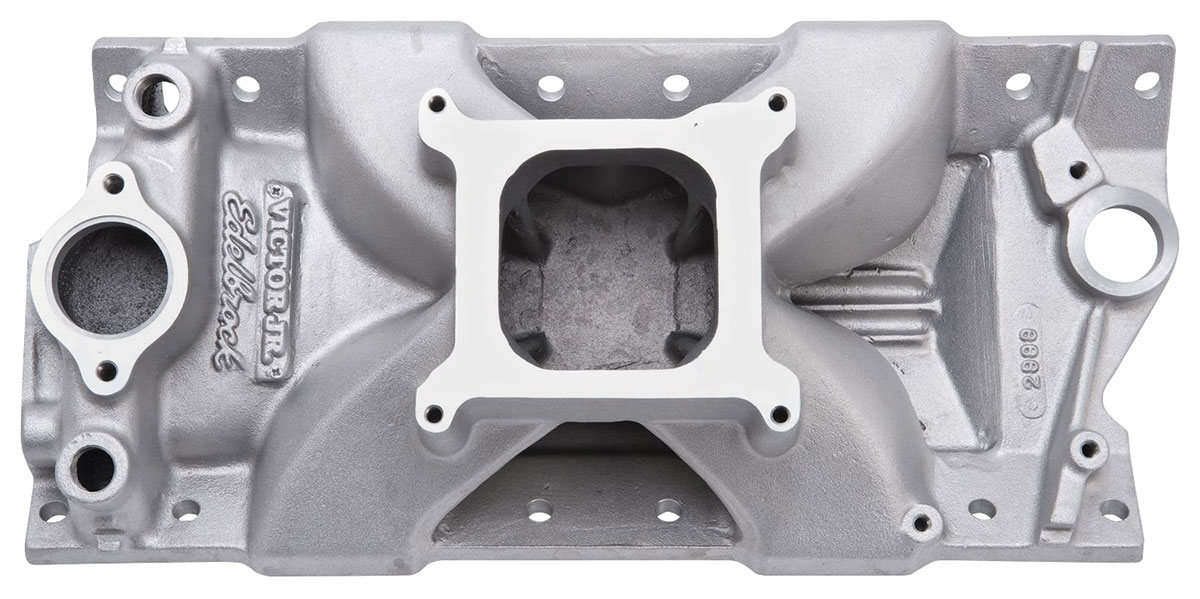

Small-Block Chevrolet Victor Jr. Tall Single-Plane Intake Manifold (Square-Bore) by Edelbrock®

Single-Plane aluminum intake tuned for 262–400-ci engines with 3,500–7,500 rpm operating range.

This Edelbrock® Victor Jr. Tall aluminum single-plane intake manifold is developed for small-block Chevrolet V8 engines with compatible small-block cylinder heads. The runner and plenum arrangement targets a 3,500–7,500 RPM operating range and features a square-bore carburetor mounting pad. Its single-plane design prioritizes high-RPM airflow for racing or serious performance use. The carburetor mounting pad is one inch taller than the standard-height Victor Jr. #2975, useful when carburetor spacers are not permitted.

• Small-Block Chevrolet V8 262–400-ci family • Victor Jr. Tall single-plane aluminum manifold • Operating range 3,500–7,500 RPM • Square-bore carburetor mounting flange • High-RPM performance induction
