Sending Unit, Fuel, 1977-82 Cadillac DeVille & Fleetwood

1977-80 Cadillac DeVille / 1977-80 & 1982 Fleetwood Fuel Sending Unit

A stainless steel sender body, brass float and included seal support fuel-level sender service.

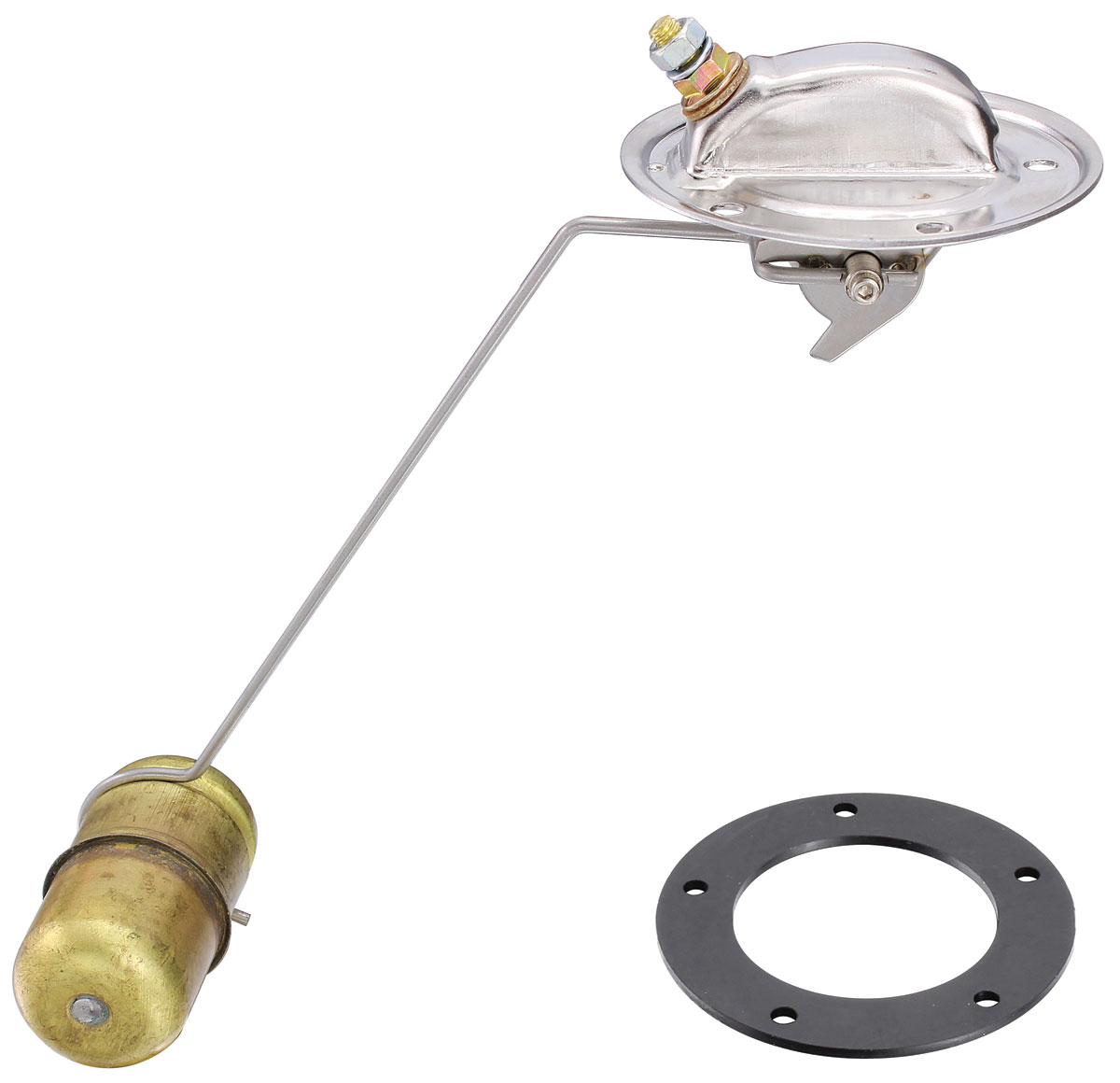

This reproduction fuel sending unit has a stainless steel main body, brass float and new neoprene gasket. The FG10C configuration covers carbureted 1977-79 Cadillac DeVille and Fleetwood with the 425 engine, 1980 DeVille and Fleetwood with the 368, and the carbureted 368-equipped 1982 Fleetwood. Its 0-ohm-empty to 95-ohm-full resistance range must match the fuel gauge. A lock ring and strainer are included with the mapped sender; the fuel pump is not included.

• Carbureted Cadillac 425 and 368 coverage • Stainless steel body and brass float • 0 ohms empty; 95 ohms full • Neoprene sender gasket included • Lock ring and strainer included • Fuel pump is not included
