1970 Oldsmobile Cutlass Complete Fuel Tank Kit — 20-Gallon, 2-Vent, 3/8" Sending Unit with Return
RESTOPARTS® Complete Factory-Style Fuel Tank Replacement Kit

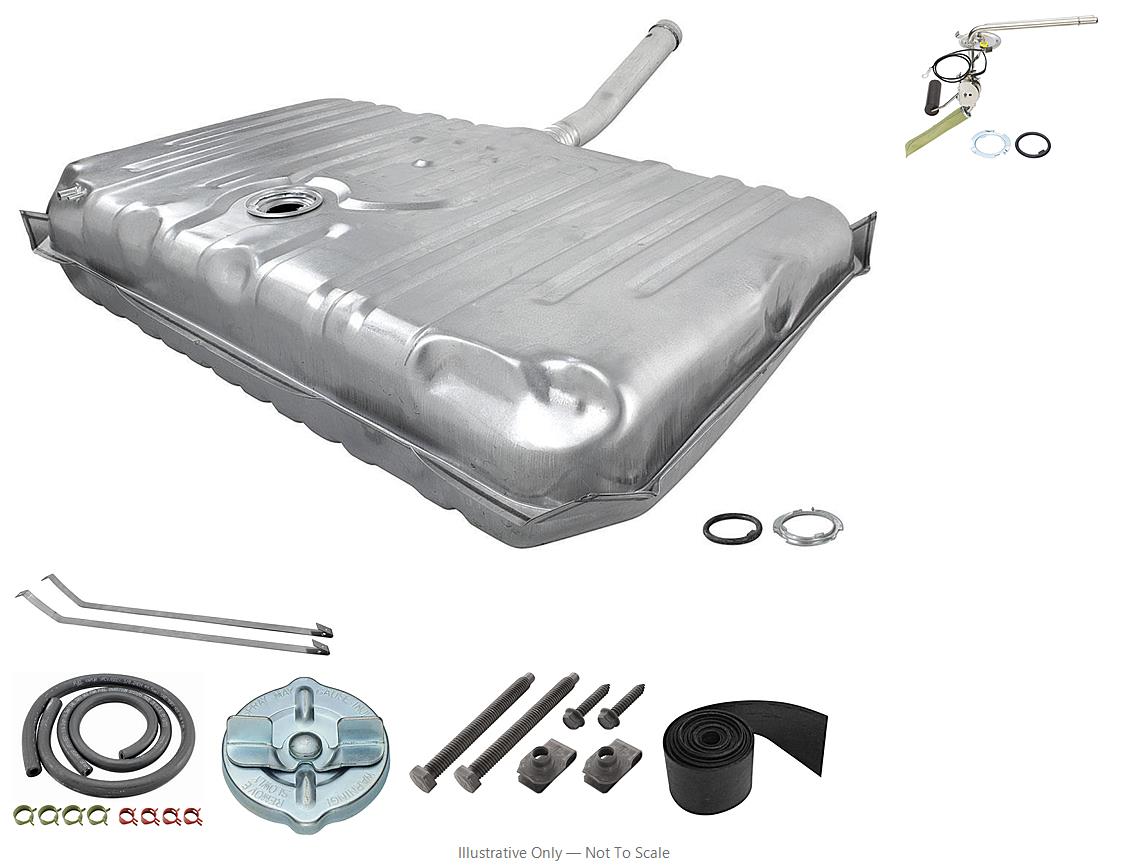

This comprehensive RESTOPARTS® fuel tank kit combines the major components required to replace the original fuel tank assembly on 1970 Oldsmobile Cutlass applications equipped with the 2-vent tank configuration and 3/8-inch fuel sending unit with 1/4-inch return line.
The kit is built around the correct 20-gallon reproduction fuel tank with two factory-style vent connections and integral filler neck. Professionally die-stamped from galvanized steel, the tank reproduces the original factory dimensions, contours and mounting configuration. A double-sided zinc coating provides corrosion protection to both the interior and exterior steel surfaces.
Tank seams and attached components are copper brazed for strength and durability, with an additional protective finish applied to the brazed areas. The tank also includes the fuel-sending-unit lock ring and gasket.
Importantly, this kit includes the correct 3/8-inch fuel sending unit with 1/4-inch return connection, along with both 3/8-inch and 1/4-inch fuel hose and clamps. The package is completed with galvanized tank mounting straps, strap hardware, tank-to-body seal and a shallow-neck reproduction vented fuel cap. Each component either produced by, or sourced factory direct by Original Parts Group.
Features
• Comprehensive factory-style fuel tank replacement package
• Correct 20-gallon capacity
• Correct 2-vent configuration
• Integral factory-style filler neck
• 3/8" sending unit with 1/4" fuel return
• Die-stamped galvanized-steel tank construction
• Double-sided zinc coating for corrosion resistance
• Copper-brazed tank seams and components
• Includes tank mounting straps and installation hardware
• Includes tank-to-body seal
• Includes fuel and return hoses with clamps
• Includes reproduction vented fuel cap
• Sourced factory direct by Original Parts Group
• Backed by the RESTOPARTS® 12-Month Warranty
Notes
- This item is not eligible for any further discounts or promotional pricing.
- This kit includes one components excluded from free ground shipping: one Oversize 3.
-
