Fuel Tank, Aeromotive, Stealth II, 1968-70 GTO, LeMans, Grand Prix

1968-70 Pontiac GTO, LeMans & Grand Prix Gen II Stealth Fuel Tank by Aeromotive®

Phantom baffling helps maintain fuel at the pump inlet, even when the fuel level is low.

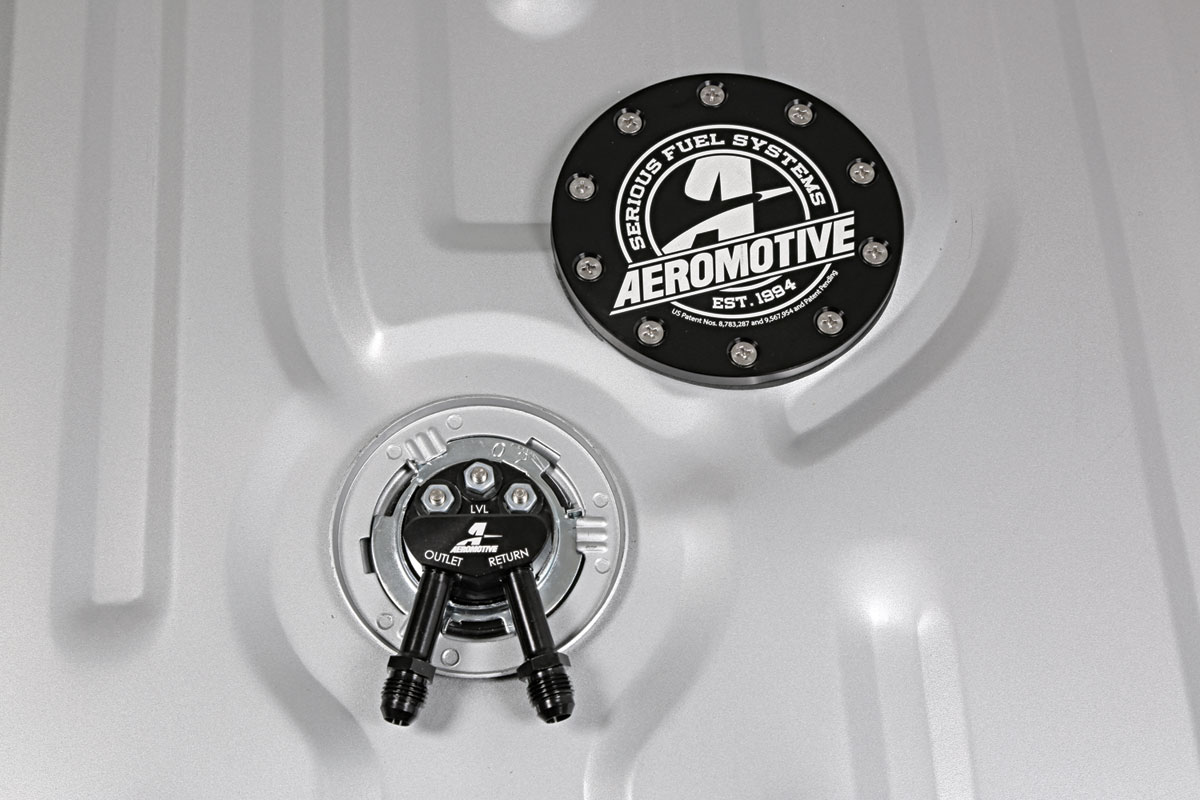

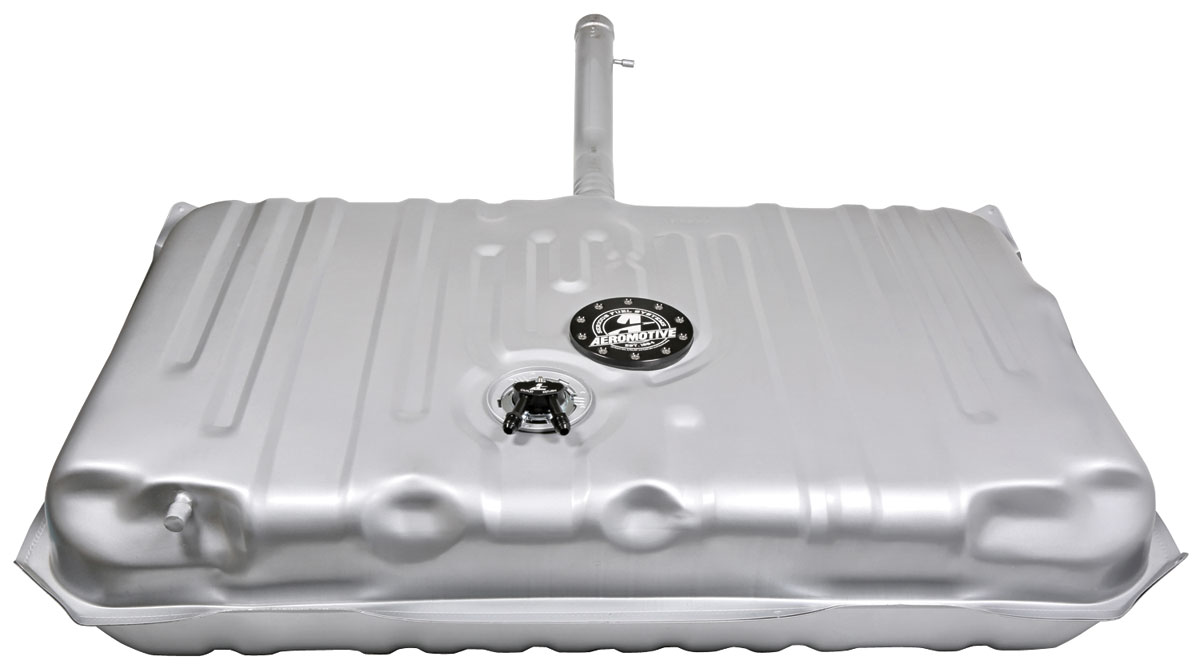

Built for your 1968-70 Pontiac GTO, LeMans or Grand Prix, this 20-gallon Gen II Stealth steel tank combines original-style exterior fit with patented, award-winning Phantom in-tank technology from Aeromotive®. A quiet, high-flow EFI pump and internal baffle keep fuel around the pump inlet to support consistent fuel delivery and drivability, even when the fuel level is low. Choose the 200 or 340 LPH pump version. The ORB-06 outlet and return ports, together with the electrical terminals, are positioned at the original fuel outlet location. This allows flush installation beneath the vehicle floor using the stock mounting straps, without strap modifications or spacers. Each tank arrives fully assembled with the selected pump, 0-90-ohm fuel level sender and fuel/electrical bulkhead pre-installed, reducing assembly work before installation.

• 1968-70 Pontiac GTO, LeMans & Grand Prix • 20-gallon steel tank with Phantom baffling • Quiet 200 or 340 LPH fuel pump options • Pre-installed 0-90-ohm fuel level sending unit • ORB-06 outlet and return ports • Stock mounting straps; no modifications or spacers • Pump and fuel/electrical bulkhead pre-installed
