Regulator, Fuel Pressure, Aeromotive, A1000, Electronic Fuel Injected

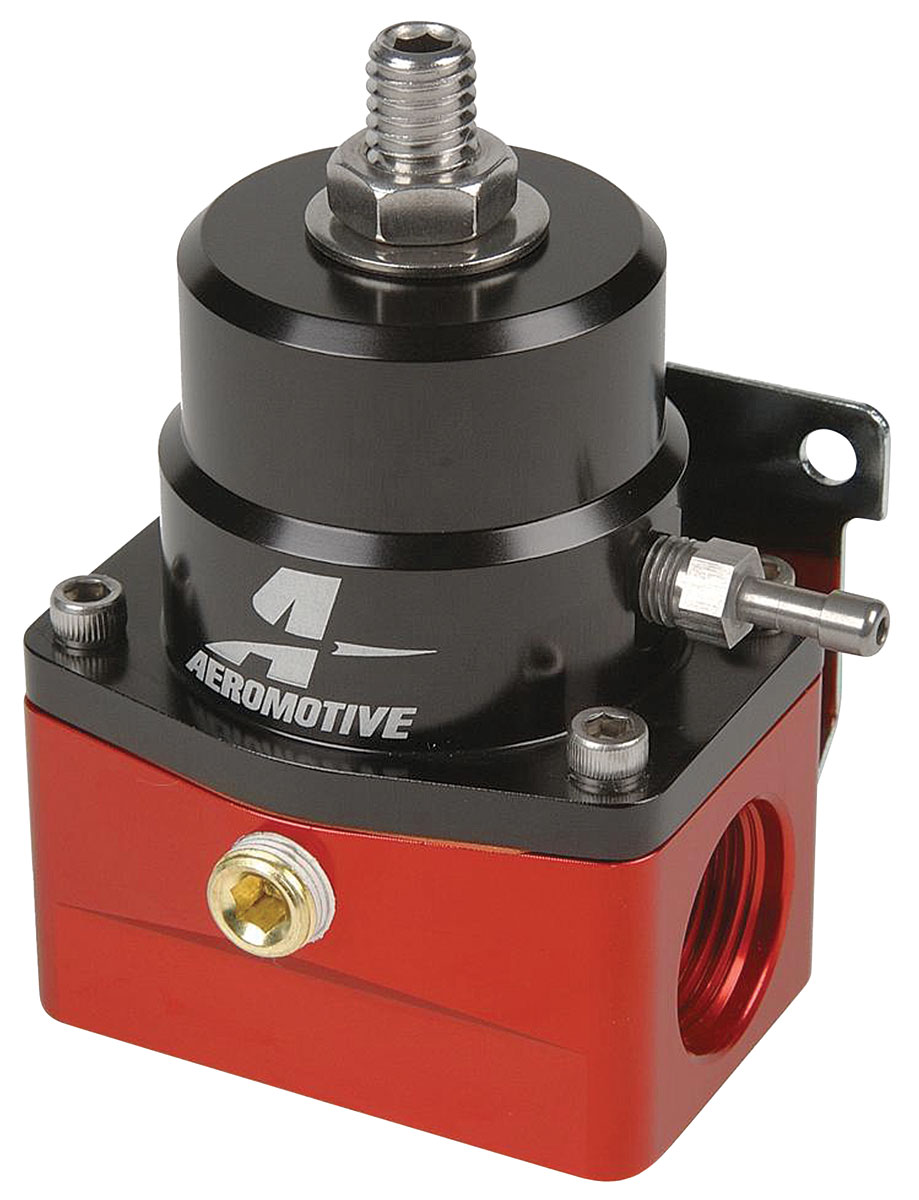

A1000 EFI Bypass Fuel Pressure Regulator by Aeromotive®

Adjustable 40-75 psi base pressure and a 1:1 boost/vacuum reference control fuel delivery.

This Aeromotive® A1000 bypass regulator uses anodized billet aluminum and returns excess fuel to the tank to control pressure in a fuel-injected system. Base pressure adjusts from 40-75 psi, and the boost/vacuum reference changes fuel pressure at a 1:1 ratio. It supports gasoline or alcohol fuel systems, including supercharged and turbocharged engines. Connections include two ORB-10 inlet ports, an ORB-06 return port and a 1/8" NPT gauge port. Installation instructions are included to guide setup and adjustment.

• EFI return-style fuel pressure control • Adjustable 40-75 psi base pressure • Anodized billet aluminum regulator body • 1:1 boost/vacuum pressure reference • Two ORB-10 inlets; one ORB-06 return • 1/8" NPT pressure gauge port • Gasoline or alcohol fuel compatibility • Installation instructions are included
