Aeromotive

Fuel System, Phantom 340, Aeromotive, Late Model EFI Applications

Part# : ARO7166
Mfg#: 17166
Sold As: Set
Ship Size: Oversize 3
$1,778.99
List Price: $1,957.95
You Save $178.96

Ships direct from manufacturer
Allow 2-6 weeks for item to arrive.
Vehicle Specific View fitment for 26 models
Add To Wishlist

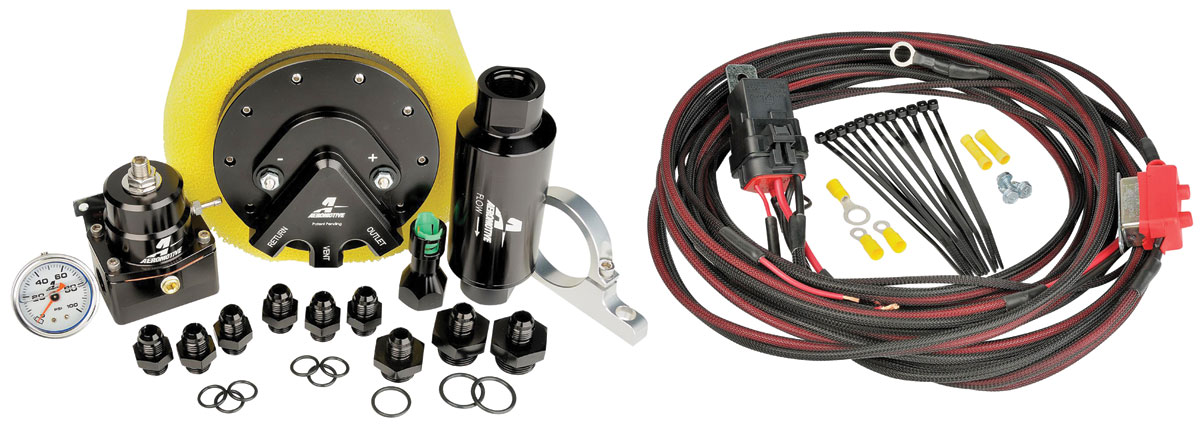

Phantom 340 Late-Model EFI / OEM Returnless-Rail Fuel System Kit by Aeromotive®

An in-tank pump and fuel-control baffle support quieter operation and consistent low-fuel pickup.

This Aeromotive® Phantom 340 kit equips a compatible stock fuel tank for late-model EFI engine swaps using an OEM returnless fuel rail with a quiet in-tank pump. The Phantom baffle and bladder control fuel movement around the inlet, helping keep the pump supplied as the tank level drops. The package combines the 18688 pump assembly with a 10-micron fuel filter and bracket, 13131 bypass pressure regulator, pump wiring kit, pressure gauge and the fittings for this configuration. Anodized billet aluminum components provide the system connections; the kit is made in the USA. Detailed instructions guide installation and setup. Tank depth, available mounting clearance, fuel type and engine demand must be checked before installation. Fuel hose and hose ends must be supplied to complete the plumbing.

• Configured for late-model EFI engine swaps using an OEM returnless fuel rail • One 18688 Phantom 340 pump assembly • One 12321 10-micron filter and one 12305 bracket • One 13131 bypass fuel pressure regulator • One 16307 fuel pump wiring kit • One 15633 0-100 psi fuel pressure gauge • One 15118 3/8" quick-connect to AN-08 adapter • One 15605 ORB-08 to AN-06 flare fitting • Six 15606 ORB-06 to AN-06 flare fittings • Two 15609 ORB-10 to AN-06 flare fittings

Notes

  • AN-08 fuel hose and hose ends will be needed to complete fuel supply and return lines.
  • This item is not eligible for any further discounts or promotional pricing.
  • This item is Oversize 3, and is excluded from free ground shipping.
  • This item is SPECIAL ORDER and will drop-ship from the manufacturer. While the majority of drop ship orders experience no delays, please be advised that OPGI does not control delivery times.
3
This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only. Learn More
We aim to provide accurate and complete product information. If you notice anything incorrect, missing, or unclear, please let us know.
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1982 Buick Grand National late model EFI
1984–1987 Buick Grand National late model EFI
1978–1987 Buick Regal late model EFI
1963–1976 Buick Riviera late model EFI
1961–1972 Buick Skylark late model EFI
1983–1986 Buick T-Type late model EFI
1938–1953 Cadillac 60 Special
1959–1993 Cadillac DeVille late model EFI
1953–1993 Cadillac Eldorado late model EFI
1965–1993 Cadillac Fleetwood late model EFI
1939–1951 Cadillac Series 60 late model EFI
1939–1951 Cadillac Series 61 late model EFI
1940–1964 Cadillac Series 62 late model EFI
1939–1951 Cadillac Series 63 late model EFI
1936–1937 Cadillac Series 70
1976–2004 Cadillac Seville
1964–1977 Chevrolet Chevelle late model EFI
1964–1987 Chevrolet El Camino 1964–1977: late model EFI
1978–1987: late model EFI
1978–1983 Chevrolet Malibu late model EFI
1997–2022 Chevrolet Malibu
1970–1988 Chevrolet Monte Carlo 1970–1977: late model EFI
1978–1988: late model EFI
1961–1987 Oldsmobile Cutlass 1961–1977: late model EFI
1978–1987: late model EFI
1958–1977 Pontiac Bonneville 1959–1976: late model EFI
1982–1986 Pontiac Bonneville late model EFI
1959–1977 Pontiac Catalina 1959–1976: late model EFI
1962–1987 Pontiac Grand Prix 1962–1976: late model EFI
1978–1987: late model EFI
1964–1973 Pontiac GTO late model EFI
1961–1974 Pontiac LeMans 1961–1973: late model EFI
1961–1970 Pontiac Tempest late model EFI
