Phantom 340 EFI Conversion Fuel System Kit by Aeromotive®

An in-tank pump and fuel-control baffle support quieter operation and consistent low-fuel pickup.

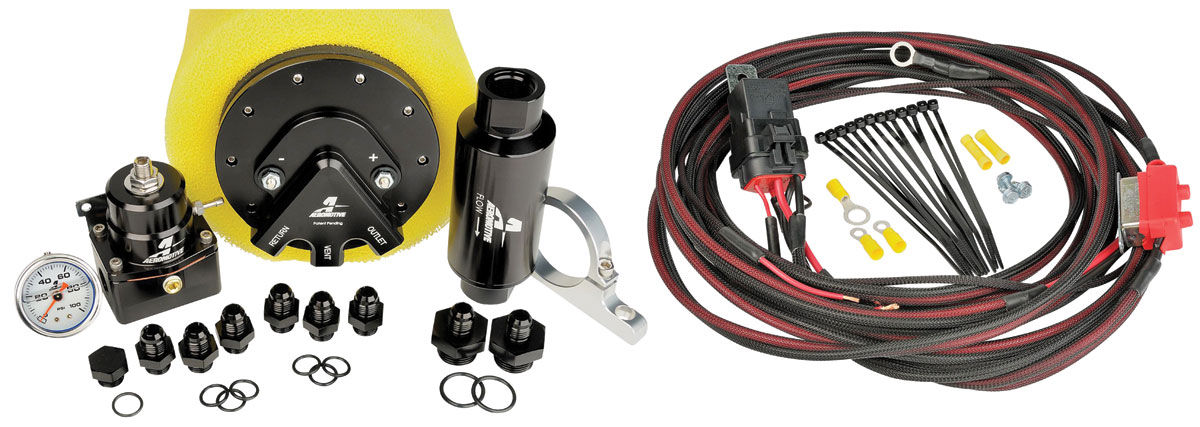

This Aeromotive® Phantom 340 kit equips a compatible stock fuel tank for EFI throttle-body conversions with a quiet in-tank pump. The Phantom baffle and bladder control fuel movement around the inlet, helping keep the pump supplied as the tank level drops. The package combines the 18688 pump assembly with a 10-micron fuel filter and bracket, 13131 bypass pressure regulator, pump wiring kit, pressure gauge and the fittings for this configuration. Anodized billet aluminum components provide the system connections; the kit is made in the USA. Detailed instructions guide installation and setup. Tank depth, available mounting clearance, fuel type and engine demand must be checked before installation. Fuel hose and hose ends must be supplied to complete the plumbing.

• Configured for EFI throttle-body conversions • One 18688 Phantom 340 pump assembly • One 12321 10-micron filter and one 12305 bracket • One 13131 bypass fuel pressure regulator • One 16307 fuel pump wiring kit • One 15633 0-100 psi fuel pressure gauge • Six 15606 ORB-06 to AN-06 flare fittings • Two 15609 ORB-10 to AN-06 flare fittings • One 15626 ORB-06 port plug
