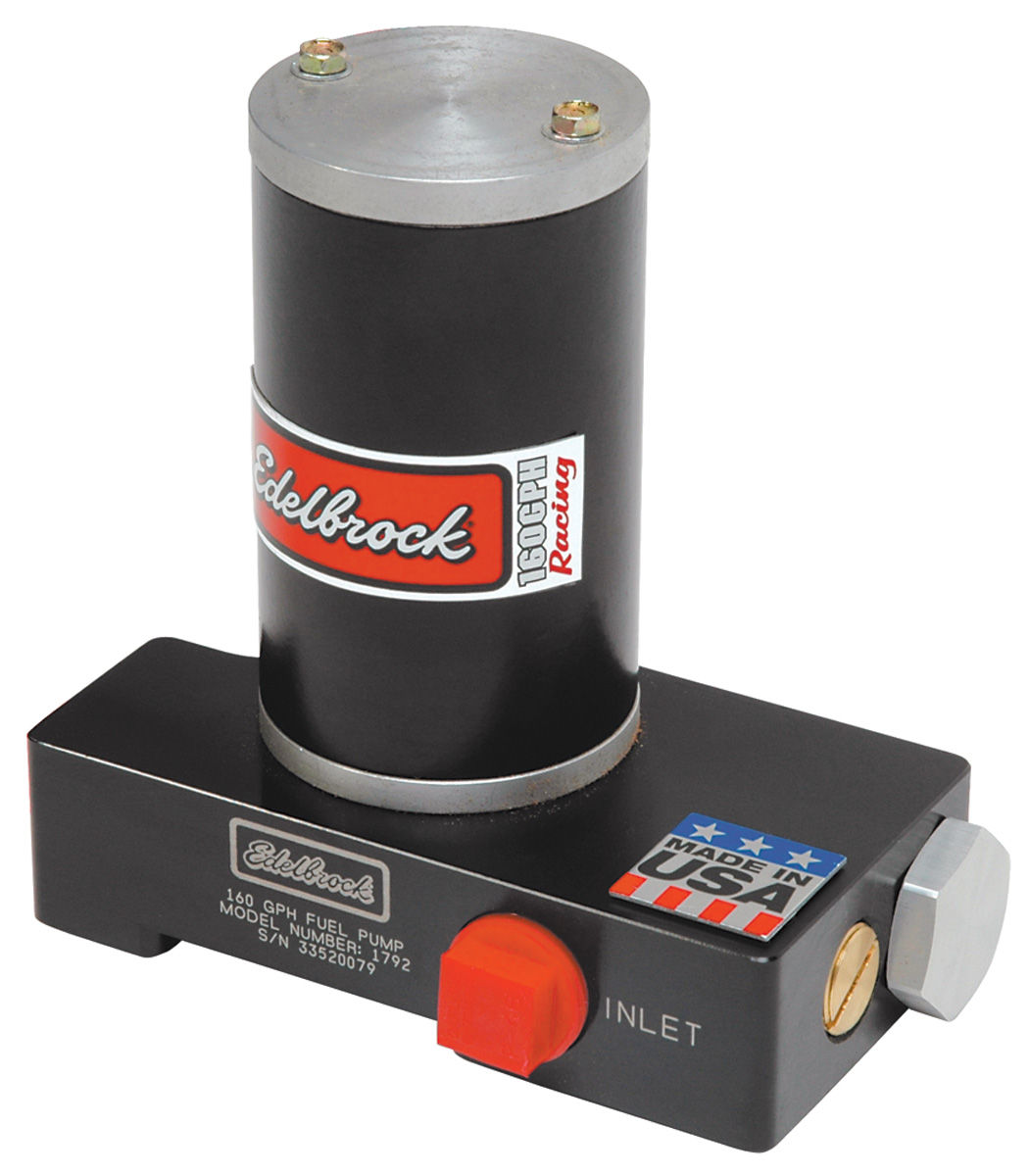

Fuel Pump, Electric, Edelbrock, 160 GPH
ADDED TO YOUR WISHLIST!
Supply the fuel volume required by high-performance carbureted engines with the Edelbrock Quiet-Flo in-line electric fuel pump. Designed for street performance and racing applications, this pump delivers a 160 GPH free-flow capacity with a factory pressure setting of 12 PSI. Its compact black-anodized aluminum housing features carbon vanes and a composite rotor engineered for consistent fuel delivery and reduced operating noise. The Quiet-Flo design operates approximately 4–14 dB quieter than comparable pumps operating at the same pressure. Designed for external mounting, this pump features 1/2" NPT inlet and outlet connections and a replaceable screen-type inlet filter for convenient maintenance. Its high-volume design supports carbureted engines producing up to 1,000 horsepower under suitable fuel system conditions. An external fuel pressure regulator, such as Edelbrock #1727, is required to reduce fuel pressure to the carburetor's specified operating range. A mounting bracket and hardware are included. For proper operation, install the pump near the fuel tank at or below the fuel level and use a relay-controlled 12-volt electrical supply.
Features • Genuine Edelbrock Quiet-Flo electric fuel pump, #1792 • High-volume 160 GPH free-flow capacity • Factory preset to 12 PSI fuel pressure • Delivers 80 GPH at 6.5 PSI • Supports up to 1,000 horsepower in carbureted applications • Black-anodized aluminum pump housing • Carbon vane and composite rotor construction • Designed for reduced operating noise • Operates approximately 4-14 dB quieter than comparable pumps • 1/2" NPT fuel inlet and outlet connections • Replaceable screen-type inlet fuel filter • External in-line mounting configuration • Includes mounting bracket and installation hardware • External fuel pressure regulator required • Requires relay-controlled 12-volt electrical supply
