Fuel Pump, Electric, Edelbrock, 120 GPH

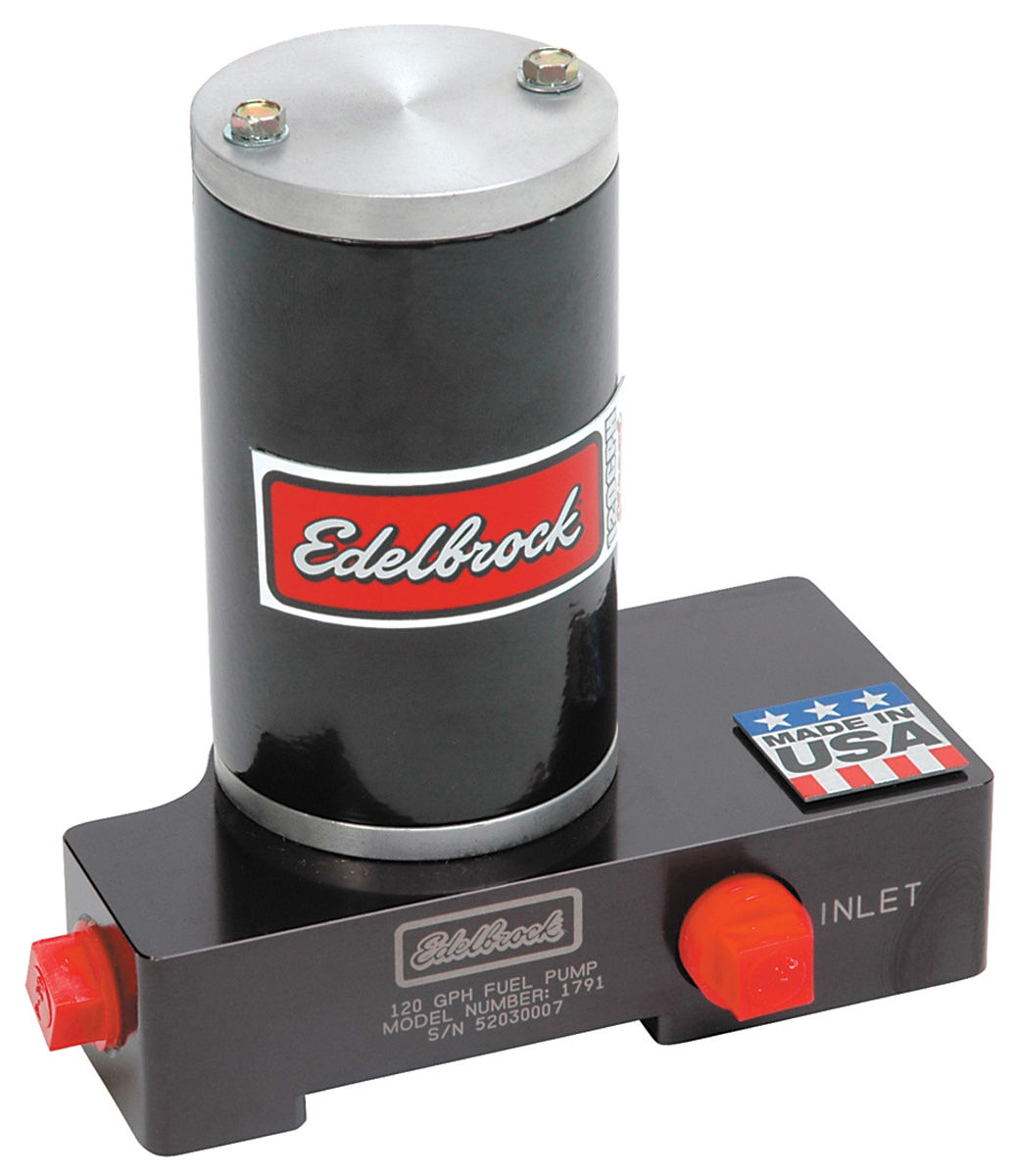

Edelbrock Quiet-Flo Electric Fuel Pump, In-Line, 120 GPH, 6.5 PSI, Black

Quiet-operating 120 GPH electric fuel pump with black-anodized aluminum housing and 6.5 PSI output

Deliver consistent fuel flow to your carbureted engine with the Edelbrock Quiet-Flo in-line electric fuel pump. Designed for street performance and custom fuel system applications, this pump features a 120 GPH free-flow capacity and is factory preset to 6.5 PSI, eliminating the need for an external fuel pressure regulator when used at its preset pressure. Its compact black-anodized aluminum housing contains carbon vanes and a composite rotor designed to provide dependable fuel delivery while reducing operating noise by 4–14 dB compared to competing pumps operating at the same pressure. Designed for external mounting, this pump features 3/8" NPT inlet and outlet connections and a replaceable screen-type inlet filter for convenient maintenance. The pump supports engines producing more than 480 horsepower under suitable fuel system conditions and includes a mounting bracket for installation. For proper operation, the pump should be mounted as close to the fuel tank as possible, at or below the fuel level. A 12-volt fuel pump relay circuit is required, with Edelbrock relay kit #1795 recommended separately. Intended for gasoline-powered carbureted applications only.

Features • Genuine Edelbrock Quiet-Flo electric fuel pump, #1791 • 120 GPH free-flow fuel delivery capacity • Factory preset to 6.5 PSI fuel pressure • No external fuel pressure regulator required at preset pressure • Black-anodized aluminum pump housing • Carbon vane and composite rotor construction • Designed for quieter fuel pump operation • Up to 14 dB quieter than comparable pumps • Replaceable screen-type inlet fuel filter • 3/8" NPT fuel inlet and outlet connections • Supports 480+ horsepower under suitable conditions • External in-line mounting configuration • Includes fuel pump mounting bracket • Requires 12-volt relay-controlled electrical supply • Designed for carbureted gasoline applications only
