Fuel Pump, Carbureted, Aeromotive, Phantom, Returnless

Phantom Returnless Carbureted In-Tank Fuel Pump System by Aeromotive®

A quiet Stealth 325 in-tank pump uses a 15 psi preset supply and an adjustable fuel-control sump.

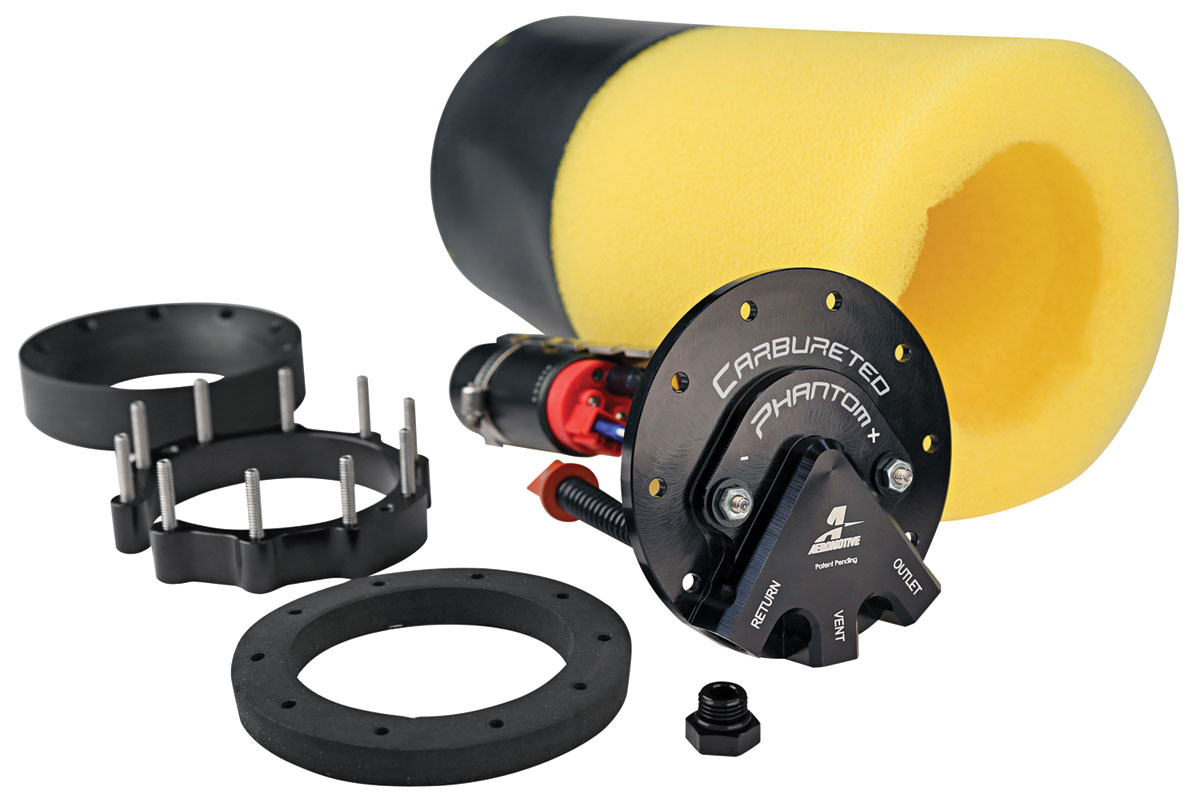

This Aeromotive® returnless Phantom system places a Stealth 325 pump inside a compatible fuel tank for quieter carbureted operation than an external T-style pump. Its foam baffle and bladder sump hold fuel around the high-flow pre-pump filter, helping maintain supply as fuel moves in the tank. The assembly adjusts for tank depths from 6 to 11 inches. A billet top hat with ORB-06 ports, proprietary sealing gasket, installation ring and billet C-ring mount are included. Supply pressure is preset to 15 psi; a separate static, dead-head carburetor regulator is still required to set the pressure at the carburetor. Aeromotive® rates the gasoline system for up to 900 HP naturally aspirated or 750 HP with forced induction.

• Stealth 325 in-tank fuel pump • Returnless supply preset to 15 psi • Adjustable for 6-11-inch tank depth • Billet top hat with ORB-06 ports • Foam baffle, bladder sump and high-flow pre-pump filter • Includes sealing gasket, installation ring and billet C-ring • Separate dead-head carburetor regulator required • Gasoline: up to 900 HP naturally aspirated; 750 HP forced induction
