Fuel Pump, 1967 GTO 400ci/Tempest 326ci, Late, Short, 5/16" Inlet, 3-Line Pump

1967 Pontiac GTO 400/Tempest 326 V8 Short-Body Three-Line Fuel Pump by Carter®

Carter precision-cast mechanical pump delivers 40–45 GPH at 5¼–6½ PSI in late-1967 installations.

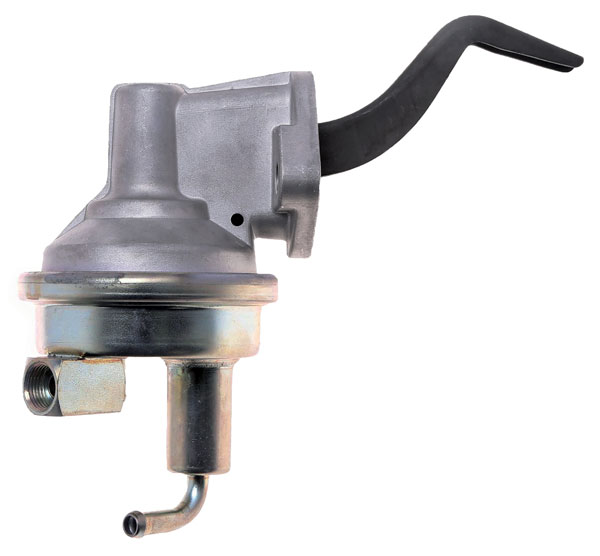

This short-housing Carter® mechanical fuel pump is designed for late-production 1967 Pontiac GTO 400 and Tempest 326 V8 engines with the three-line fuel-system arrangement. Its camshaft-operated rocker arm and precision-cast aluminum housing provide approximately 40–45 gallons per hour at 5.25–6.5 PSI. The pump uses an approximately 5/16-inch tubing inlet and ⅝-18 threaded outlet, and Carter lists a mounting gasket. The short-housing and three-line configuration are important; earlier 1967 applications and two-line systems may use different pumps.

• Late-production 1967 Pontiac GTO 400/Tempest 326 • Short-housing mechanical fuel pump • Three-line fuel-system arrangement • Approximately 40–45 GPH at 5.25–6.5 PSI • 5/16-inch inlet; ?-18 threaded outlet • Mounting gasket included
