Fuel System, FiTech Force Fuel System

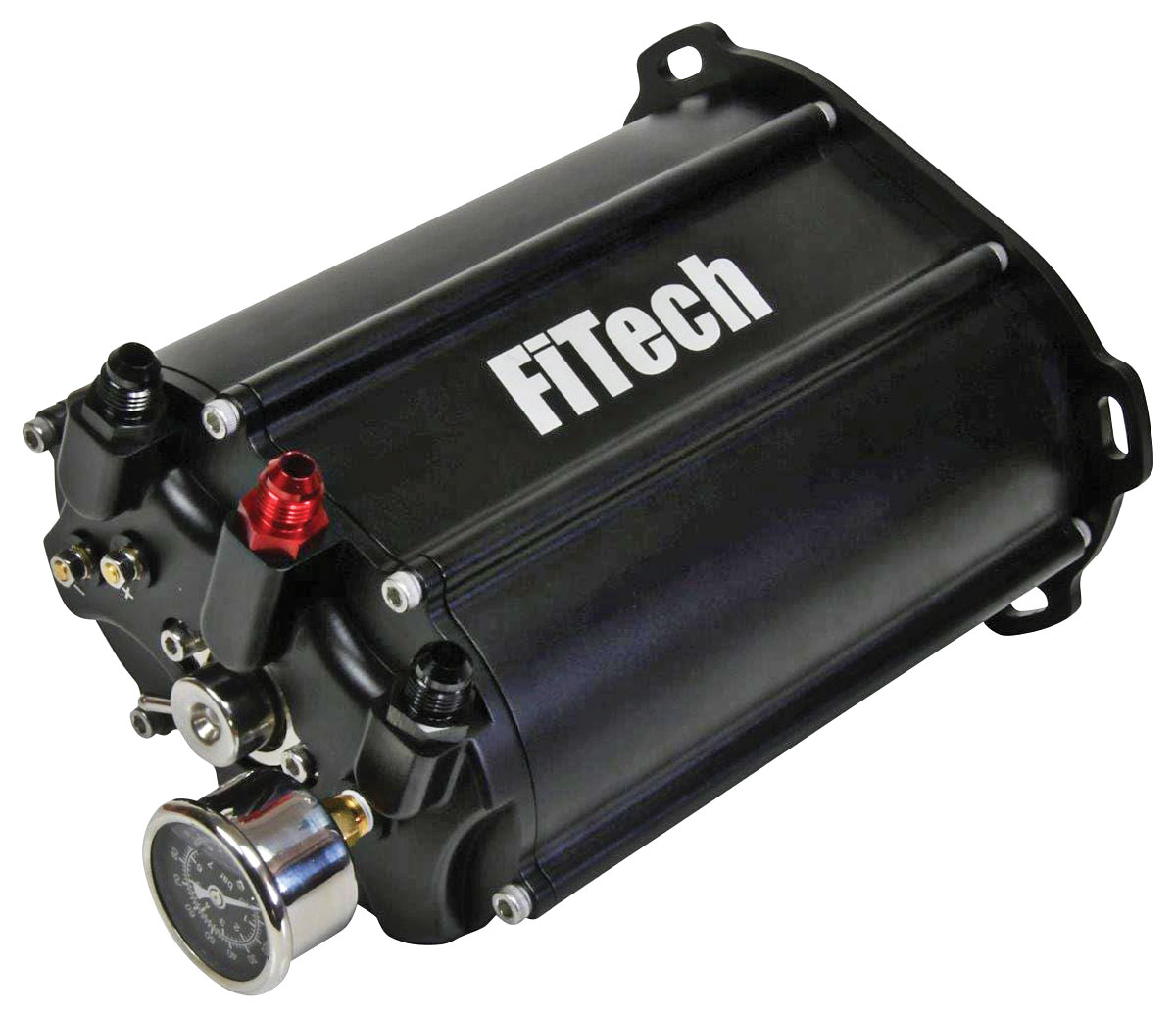

Force Fuel 340 LPH EFI Fuel Supply System by FiTech®

A submerged EFI pump and regulator use the original fuel feed while buffering fuel during vehicle motion.

This FiTech® Force Fuel system is fed by the existing mechanical or electric fuel pump and supplies EFI pressure from an internal 340 LPH pump. Its half-gallon reservoir keeps the pump submerged for cooling and helps reduce fuel-pickup interruption during cornering or acceleration. The built-in regulator maintains 58 psi, with capacity for an 800 HP gasoline engine. The reservoir mounts from the bottom or side, allowing the original feed line to remain in use; a return connection to the tank is still required. The system is compatible with E85, ethanol and methanol fuels when the rest of the installation is compatible. Supplied parts include 5 feet of high-pressure hose, a serviceable 10-micron filter, AN fittings, return fitting/bung, liquid-filled pressure gauge and wiring terminals.

• Internal pump flow: 340 LPH • Half-gallon submerged-pump reservoir • Regulated fuel pressure: 58 psi • Supports up to 800 HP on gasoline • Fed by existing mechanical or electric pump • Bottom or side reservoir mounting • 5-foot hose and 10-micron filter included • AN fittings, return fitting and gauge included • Compatible with E85, ethanol and methanol • Fuel-tank return connection still required
