Photo of EFI Set, Edelbrock, Pro-Flo, 4150-Style, LS GEN III/IV, Cathedral Port, 35Lb/Hr.
Illustrative Only

Edelbrock

EFI Set, Edelbrock, Pro-Flo, 4150-Style, LS GEN III/IV, Cathedral Port, 35Lb/Hr.

Fits 1958–1986 Bonneville View fitment for 53 models
Part# : CH35582
Mfg#: 35710
Sold As: Each
Ship Size: Oversize 3
$2,267.99
List Price: $2,495.95
You Save $227.96

Calendar IconArriving Soon
Add To Wishlist

Advanced Tuning

Bluetooth ECU

Edelbrocks Pro-Flo 4 EFI 4150 set comes with a complete intake manifold, which also includes a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and is made in the USA. Fully terminated high-quality harness with clearly labeled connections for a hassle-free installation. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. Edelbrock has added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. Edelbrock's E-Tuner 4 app is Free and exclusive for Android and IOS based smart phone or tablet.

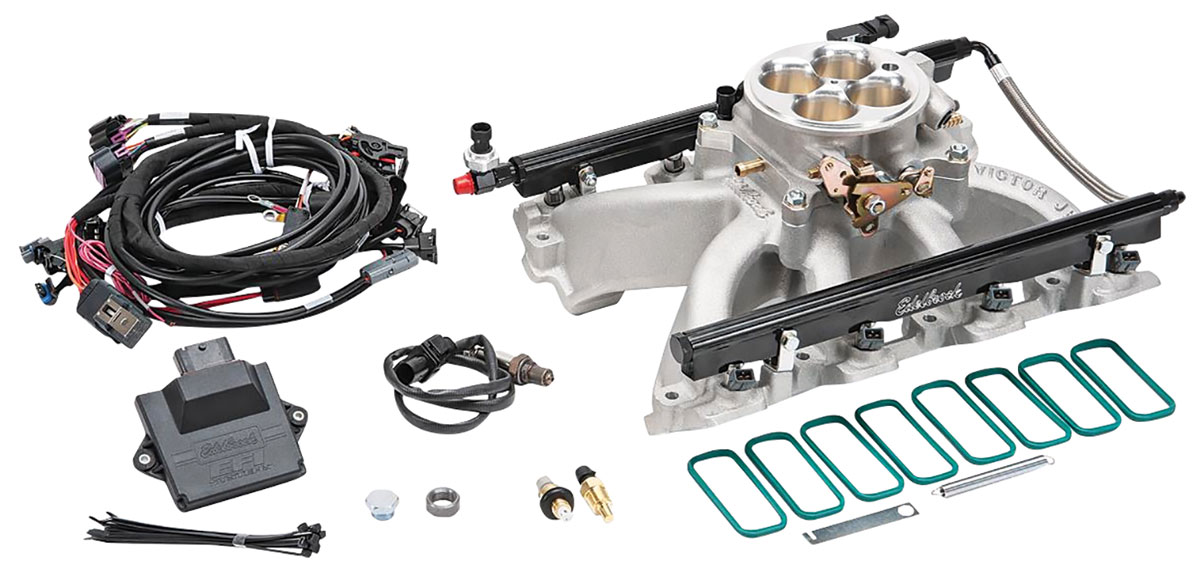

Components included: Assembled 4150 Style Intake Manifold, Pro-Flo ECU, Distributor(Not included w LS applications), Oxygen Sensor(o2), Fuel Pressure Sensor(-6AN Male), Throttle Position Sensor(TPS), Coolant Temp Sensor(Not included on LS applications), Idle Air Control Valve(IAC), and Manifold Absolute Pressure(MAP), Two full time 3/8 PCV Ports(1 for Brake Booster), Dual aluminum Fuel Rail, Low Impedance Fuel Injectors, Gaskets and Hardware, Main Engine, Coil, and Injector/Sensor Harnesses w/ Pre-terminated Connectors and Labeled Connections.

Notes

  • Requires a high pressure fuel system providing 43-45 or 58-60 psi of fuel pressure with a flow rating of 57 GPH (215 liter/hr.).
  • LS Gen III and IV applications require coil harness(sold separately).
  • Forced induction applications require a 2.5-bar MAP sensor.
  • This item is not eligible for any further discounts or promotional pricing.
  • SHIP NOTE: Item exceeds standard ground freight size/weight, and is not eligible for free ground shipping.
3
This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only. Learn More

Find Item In This Catalog

  • 2024 Monte Carlo 70-77 146
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1982 Buick Grand National 35 Lb./Hr., up to 550HP
1984–1987 Buick Grand National 35 Lb./Hr., up to 550HP
1976–1987 Buick Regal 1978–1987: 35 Lb./Hr., up to 550HP
1963–1976 Buick Riviera 35 Lb./Hr., up to 550HP
1961–1972 Buick Skylark 35 lbs/hr, up to 550HP
1983–1987 Buick T-Type 35 Lb./Hr., up to 550HP
1938–1993 Cadillac 60 Special 35 Lb./Hr., up to 550HP
2013–2019 Cadillac ATS
1965–1976 Cadillac Calais 35 Lb./Hr., up to 550HP
2003–2019 Cadillac CTS
1959–2005 Cadillac DeVille
1953–2002 Cadillac Eldorado 1953–1993: 35 Lb./Hr., up to 550HP
1999–2000 Cadillac Escalade
2002–2023 Cadillac Escalade
2002–2013 Cadillac Escalade EXT
1954–1996 Cadillac Fleetwood 1954–1993: 35 Lb./Hr., up to 550HP
1936–1951 Cadillac Series 60 35 Lb./Hr., up to 550HP
1936–1951 Cadillac Series 61 35 Lb./Hr., up to 550HP
1937–1976 Cadillac Series 62 35 Lb./Hr., up to 550HP
1936–1951 Cadillac Series 63 35 Lb./Hr., up to 550HP
1937–1976 Cadillac Series 65 35 Lb./Hr., up to 550HP
1936–1987 Cadillac Series 67 35 Lb./Hr., up to 550HP
1936–1987 Cadillac Series 70 35 Lb./Hr., up to 550HP
1936–1987 Cadillac Series 72 35 Lb./Hr., up to 550HP
1936–1987 Cadillac Series 75 35 Lb./Hr., up to 550HP
1976–2004 Cadillac Seville 1976–1993: 35 Lb./Hr., up to 550HP
2005–2011 Cadillac STS
2004–2009 Cadillac XLR
1947–1955 Chevrolet Advance Design
1960–1987 Chevrolet C10
1960–1987 Chevrolet C20
1960–1987 Chevrolet C30
1964–1977 Chevrolet Chevelle 35 Lb./Hr., up to 550HP
1960–1969 Chevrolet Corvair
1961–1965 Chevrolet Corvair FC
1959–1960 Chevrolet El Camino
1964–1987 Chevrolet El Camino 35 Lb./Hr., up to 550HP
35 Lb./Hr., up to 550HP
1960–1987 Chevrolet K10
1960–1987 Chevrolet K20
1977–1987 Chevrolet K30
1978–1983 Chevrolet Malibu 35 Lb./Hr., up to 550HP
1997–2022 Chevrolet Malibu
1970–1988 Chevrolet Monte Carlo 1970–1977: 35 Lb./Hr., up to 550HP
35 Lb./Hr., up to 550HP
1995–2007 Chevrolet Monte Carlo
1955–1959 Chevrolet Task Force
1947–1955 GMC Advance Design
1960–1987 GMC C15
1960–1987 GMC C25
1960–1987 GMC C35
1960–1987 GMC K15
1960–1987 GMC K25
1977–1987 GMC K35
1955–1959 GMC Task Force
1961–1988 Oldsmobile Cutlass 1961–1977: 35 Lb./Hr., up to 550HP
35 Lb./Hr., up to 550HP
1958–1986 Pontiac Bonneville 1959–1986: 35 Lb./Hr., up to 550HP
1959–1977 Pontiac Catalina 35 Lb./Hr., up to 550HP
1962–1987 Pontiac Grand Prix 35 Lb./Hr., up to 550HP
1964–1973 Pontiac GTO 35 Lb./Hr., up to 550HP
1961–1981 Pontiac LeMans 1961–1973: 35 Lb./Hr., up to 550HP
1961–1970 Pontiac Tempest 35 Lb./Hr., up to 550HP
