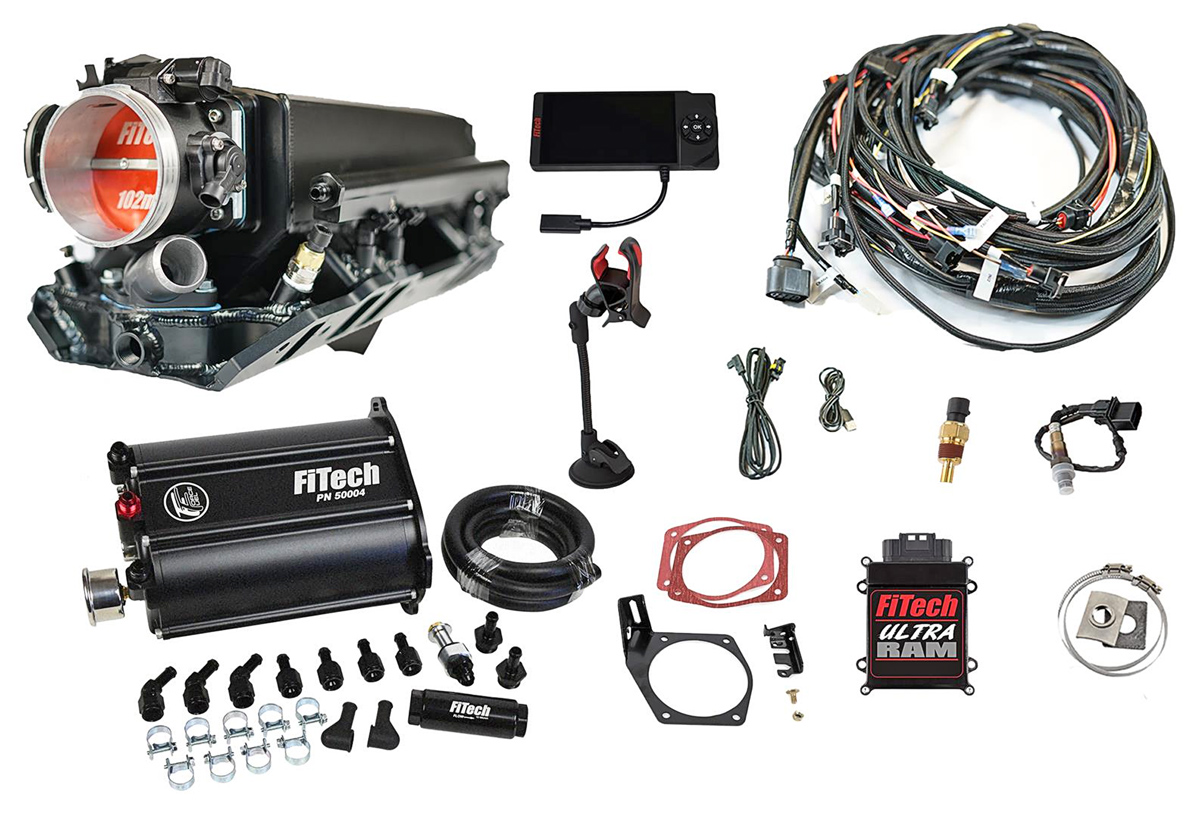

EFI Kit, Master, FiTech Ultra Ram EFI, BBC, Rectangle Port, Force Fuel Sys

FiTech Ultra Ram EFI System, Big-Block Chevy, Rectangle Port, 800 HP, with Force Fuel

Multi-port EFI master kit with 102mm throttle body, self-learning ECU and Force Fuel delivery system

Convert your rectangular-port big-block Chevrolet engine to electronic fuel injection with the FiTech Ultra Ram EFI system. Designed for standard-deck big-block Chevy applications, this system features a black-anodized aluminum intake manifold with a fabricated sheet-metal-style appearance, high-flow fuel rails and eight flow-matched 55 lb/hr injectors. A black 102mm throttle body provides up to 1,450 CFM of airflow, while the remote-mounted electronic control unit (ECU) uses self-learning fuel management to adjust fuel delivery based on engine operating conditions. Rated for engines producing up to 800 horsepower, the Ultra Ram system also supports compatible electronic ignition timing control. This master kit includes the FiTech Force Fuel underhood delivery system, which connects to a compatible existing low-pressure mechanical or electric fuel pump and supplies the EFI system through an internal 340 LPH electric pump. The half-gallon fuel reservoir helps maintain a consistent fuel supply, while an integrated regulator maintains 58 PSI fuel pressure. The Force Fuel assembly includes a serviceable 10-micron filter, fuel pressure gauge, mounting bracket, fittings and five feet of high-pressure fuel hose. The EFI system also includes a wiring harness, oxygen sensor and handheld color touchscreen controller for initial setup and tuning without requiring a laptop.

Features • Genuine FiTech Ultra Ram EFI master kit, #35302 • Designed for standard-deck big-block Chevrolet V8 engines • Compatible with rectangular-port cylinder heads • Rated for engines producing up to 800 horsepower • Sequential multi-port fuel injection system • Black-anodized aluminum intake manifold • Fabricated sheet-metal-style intake construction • Eight flow-matched 55 lb/hr fuel injectors • Includes high-flow fuel rails and injectors • Black 102mm cast aluminum throttle body • 1,450 CFM throttle body airflow rating • Remote-mounted electronic control unit (ECU) • Self-learning speed-density fuel management • Compatible with supported electronic ignition timing control • Includes handheld color touchscreen controller • Includes EFI wiring harness and oxygen sensor • Includes FiTech Force Fuel delivery system • Integrated 340 LPH electric fuel pump • Half-gallon underhood fuel reservoir • Integrated regulator maintains 58 PSI fuel pressure • Serviceable 10-micron fuel filter and pressure gauge • Includes five feet of high-pressure fuel hose and fittings • Designed to use a compatible existing low-pressure fuel pump
