As seen on

FiTech

EFI Kit, Base, FiTech Ultimate LS EFI

ooooo

0 Reviews

Part# : CH33707

Mfg#: 70001

Sold As: Each

Ship Size:

^$1,806.⁹⁹

List Price: $1,988.95

You Save $181.96

Engine

Horsepower

Trans Control

Fits 1976–1987 Regal View fitment for 62 models

Add To Wishlist

Details
Fitment
Reviews (0)

GM LS Ultimate LS Base EFI Induction Kit by FiTech®

Sequential EFI, individual-cylinder trim and optional transmission control coordinate the LS conversion.

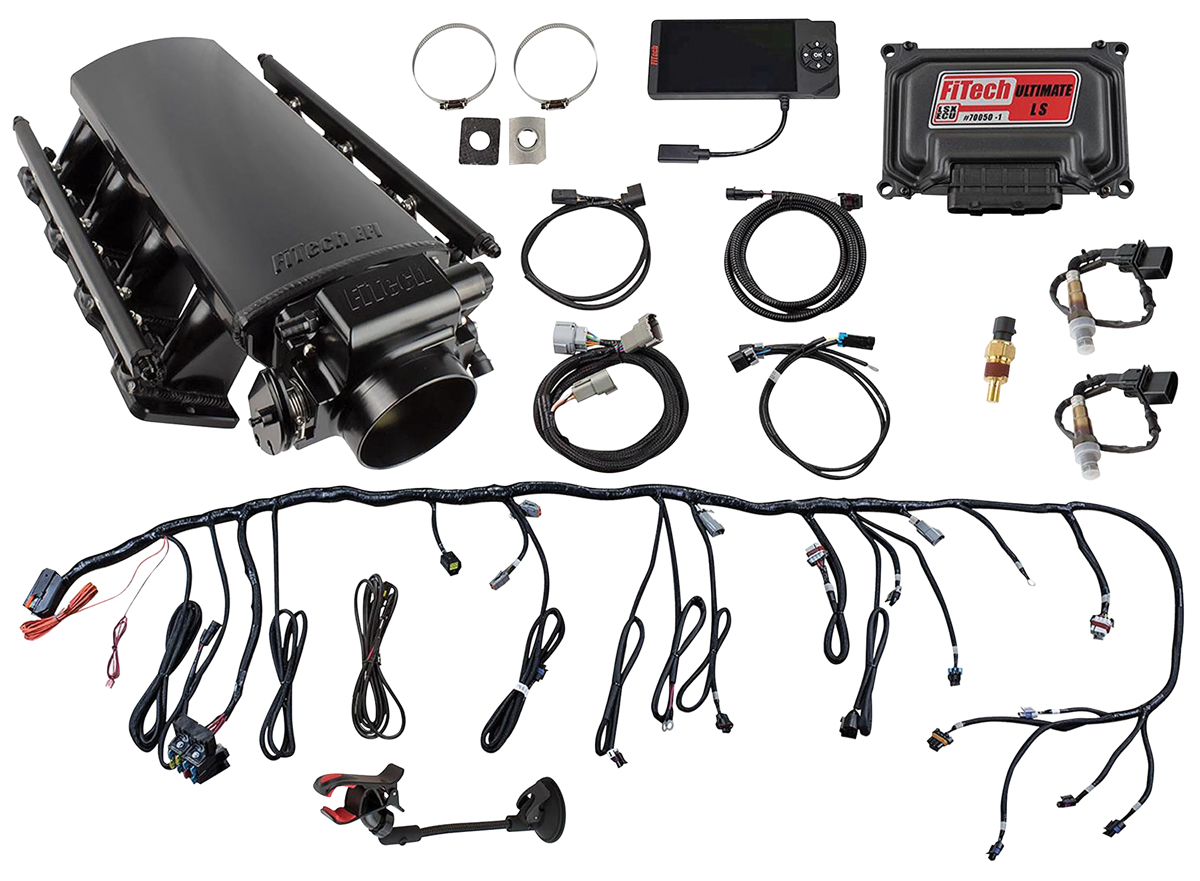

This FiTech® Ultimate LS system combines a sheet aluminum intake, cast throttle body, injectors, rails and self-learning electronic control. Select the cylinder-head port style, 500, 750 or 1,000 HP rating and transmission-control option; a tall cathedral-port intake option accommodates the truck accessory drive. The intake targets a 1,500-6,500 rpm range. Self-learning fuel control maintains the selected air/fuel target. Sequential fuel and spark control, individual-cylinder trim, factory knock-sensor input and 24x/58x crank-signal compatibility support tuning. A 3-bar MAP sensor supports boost up to 30 psi. Two programmable fan outputs, tach output, wideband oxygen sensing, a matched harness and handheld setup complete the controls. Transmission-control versions adjust shift points and firmness on compatible 4L60E/65E/80E/85E automatics. The 500 HP setup uses a 92 mm throttle body; 750 and 1,000 HP versions use 102 mm. Match the actual port, intake-height and output combination before ordering.

• LS1/LS2/LS6, LS3/L92 and LS7 port choices • 500, 750 or 1,000 HP system options • Tall cathedral-port truck-intake option • Intake operating range: 1,500-6,500 rpm • Sequential fuel/spark and individual-cylinder trim • 24x/58x crank signals; factory knock input • 3-bar MAP sensor; boost up to 30 psi • Two programmable fan outputs and tach output • Matched harness, wideband sensing and handheld • Optional 4L60E/65E/80E/85E transmission control

Notes

Base kits do not come with a fuel system.
Fuel pressure regulator required (purchased separately).
Throttle bracket not included.
This item is not eligible for any further discounts or promotional pricing.
This item is Oversize 3, and is excluded from free ground shipping.

This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only. Learn More

We aim to provide accurate and complete product information. If you notice anything incorrect, missing, or unclear, please let us know.

Report Incorrect Product Information

WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model	Application Details
1982 Buick Grand National	base, 500 HP
	base, 750 HP
	1984–1987 Buick Grand National	base, 500 HP
		base, 750 HP
1976–1987 Buick Regal		base, 500 HP
		base, 750 HP
	1978–1987: base, 500 HP
	1978–1987: base, 750 HP
1963–1976 Buick Riviera	base, 500 HP
1963–1976 Buick Riviera	base, 750 HP
1961–1972 Buick Skylark	base, 500 HP
1961–1972 Buick Skylark	base, 750 HP
1983–1986 Buick T-Type	base, 500 HP
1983–1986 Buick T-Type	base, 750 HP
1938–1993 Cadillac 60 Special	base, 500 HP
1938–1993 Cadillac 60 Special	base, 750 HP
2013–2019 Cadillac ATS	base, 500 HP
2013–2019 Cadillac ATS	base, 750 HP
1965–1976 Cadillac Calais	base, 500 HP
1965–1976 Cadillac Calais	base, 750 HP
2003–2019 Cadillac CTS	base, 500 HP
2003–2019 Cadillac CTS	base, 750 HP
1959–2005 Cadillac DeVille	base, 500 HP
1959–2005 Cadillac DeVille	base, 750 HP
1953–2002 Cadillac Eldorado	base, 500 HP
1953–2002 Cadillac Eldorado	base, 750 HP
1999–2000 Cadillac Escalade	base, 500 HP
	base, 750 HP
	2002–2023 Cadillac Escalade	base, 500 HP
		base, 750 HP
2002–2013 Cadillac Escalade EXT		base, 500 HP
2002–2013 Cadillac Escalade EXT		base, 750 HP
1965–1996 Cadillac Fleetwood	base, 500 HP
1965–1996 Cadillac Fleetwood	base, 750 HP
1936–1951 Cadillac Series 60	base, 500 HP
1936–1951 Cadillac Series 60	base, 750 HP
1946–1964 Cadillac Series 60 Fleetwood
1936–1951 Cadillac Series 61	base, 500 HP
1936–1951 Cadillac Series 61	base, 750 HP
1937–1976 Cadillac Series 62	base, 500 HP
1937–1976 Cadillac Series 62	base, 750 HP
1936–1951 Cadillac Series 63	base, 500 HP
1936–1951 Cadillac Series 63	base, 750 HP
1937–1938 Cadillac Series 65	base, 500 HP
1937–1938 Cadillac Series 65	base, 750 HP
1936–1942 Cadillac Series 67	base, 500 HP
1936–1942 Cadillac Series 67	base, 750 HP
1936–1937 Cadillac Series 70	base, 500 HP
1936–1937 Cadillac Series 70	base, 750 HP
1940 Cadillac Series 72	base, 500 HP
1940 Cadillac Series 72	base, 750 HP
1936–1942 Cadillac Series 75	base, 500 HP
	base, 750 HP
	1946–1964 Cadillac Series 75	base, 500 HP
		base, 750 HP
1946–1964 Cadillac Series 75 Fleetwood
1976–2004 Cadillac Seville		base, 500 HP
1976–2004 Cadillac Seville	base, 750 HP
2005–2011 Cadillac STS	base, 500 HP
2005–2011 Cadillac STS	base, 750 HP
2004–2009 Cadillac XLR	base, 500 HP
2004–2009 Cadillac XLR	base, 750 HP
1947–1955 Chevrolet Advance Design
1969–1994 Chevrolet Blazer	base, 500 HP
1969–1994 Chevrolet Blazer	base, 750 HP
1960–1987 Chevrolet C10	base, 500 HP
1960–1987 Chevrolet C10	base, 750 HP
1960–1987 Chevrolet C20	base, 500 HP
1960–1987 Chevrolet C20	base, 750 HP
1960–1987 Chevrolet C30	base, 500 HP
1960–1987 Chevrolet C30	base, 750 HP
1964–1977 Chevrolet Chevelle	base, 500 HP
1964–1977 Chevrolet Chevelle	base, 750 HP
1960–1969 Chevrolet Corvair	base, 500 HP
1960–1969 Chevrolet Corvair	base, 750 HP
1961–1965 Chevrolet Corvair 95 FC	base, 500 HP
1961–1965 Chevrolet Corvair 95 FC	base, 750 HP
1959–1960 Chevrolet El Camino	base, 500 HP
	base, 750 HP
	1964–1987 Chevrolet El Camino	base, 500 HP
		base, 750 HP
		1978–1987: base, 500 HP
		1978–1987: base, 750 HP
1960–1987 Chevrolet K10		base, 500 HP
1960–1987 Chevrolet K10		base, 750 HP
1960–1987 Chevrolet K20	base, 500 HP
1960–1987 Chevrolet K20	base, 750 HP
1977–1987 Chevrolet K30	base, 500 HP
1977–1987 Chevrolet K30	base, 750 HP
1978–1983 Chevrolet Malibu	base, 500 HP
	base, 750 HP
	1997–2022 Chevrolet Malibu
1970–1988 Chevrolet Monte Carlo		1970–1977: base, 500 HP
		1970–1977: base, 750 HP
	base, 500 HP
	base, 750 HP
	1978–1988: base, 500 HP
	1978–1988: base, 750 HP
	1995–2007 Chevrolet Monte Carlo	base, 500 HP
		base, 750 HP
1960–1991 Chevrolet Suburban		base, 500 HP
		base, 750 HP
		1955–1959 Chevrolet Task Force	base, 500 HP
base, 750 HP		1955–1959 Chevrolet Task Force
1955–1959 GMC Blue Chip		base, 500 HP
1955–1959 GMC Blue Chip		base, 750 HP
1960–1987 GMC C15/C1500	base, 500 HP
1960–1987 GMC C15/C1500	base, 750 HP
1960–1987 GMC C25/C2500	base, 500 HP
1960–1987 GMC C25/C2500	base, 750 HP
1960–1987 GMC C35/C3500	base, 500 HP
1960–1987 GMC C35/C3500	base, 750 HP
1978–1987 GMC Caballero	base, 500 HP
1978–1987 GMC Caballero	base, 750 HP
1970–1991 GMC Jimmy	base, 500 HP
1970–1991 GMC Jimmy	base, 750 HP
1960–1987 GMC K15/K1500	base, 500 HP
1960–1987 GMC K15/K1500	base, 750 HP
1960–1987 GMC K25/K2500	base, 500 HP
1960–1987 GMC K25/K2500	base, 750 HP
1977–1987 GMC K35/K3500	base, 500 HP
1977–1987 GMC K35/K3500	base, 750 HP
1947–1955 GMC New Design	base, 500 HP
1947–1955 GMC New Design	base, 750 HP
1971–1977 GMC Sprint	base, 500 HP
1971–1977 GMC Sprint	base, 750 HP
1960–1991 GMC Suburban
	1961–1988 Oldsmobile Cutlass	1961–1977: base, 500 HP
		1961–1977: base, 750 HP
base, 500 HP
base, 750 HP
1978–1988: base, 500 HP
1978–1988: base, 750 HP
1958–1986 Pontiac Bonneville	base, 500 HP
	base, 750 HP
	1959–1977: base, 500 HP
	1959–1977: base, 750 HP
	1978–1986: base, 500 HP
	1978–1986: base, 750 HP
1959–1977 Pontiac Catalina	base, 500 HP
1959–1977 Pontiac Catalina	base, 750 HP
1962–1987 Pontiac Grand Prix	1962–1977: base, 500 HP
	1962–1977: base, 750 HP
	base, 500 HP
	base, 750 HP
	1978–1987: base, 500 HP
	1978–1987: base, 750 HP
1964–1973 Pontiac GTO	base, 500 HP
1964–1973 Pontiac GTO	base, 750 HP
1961–1981 Pontiac LeMans	1961–1973: base, 500 HP
	1961–1973: base, 750 HP
	base, 500 HP
	base, 750 HP
1961–1970 Pontiac Tempest	base, 500 HP
1961–1970 Pontiac Tempest	base, 750 HP
