Carburetor, Edelbrock, 750 CFM, Performer, Manual Choke, NON-EGR

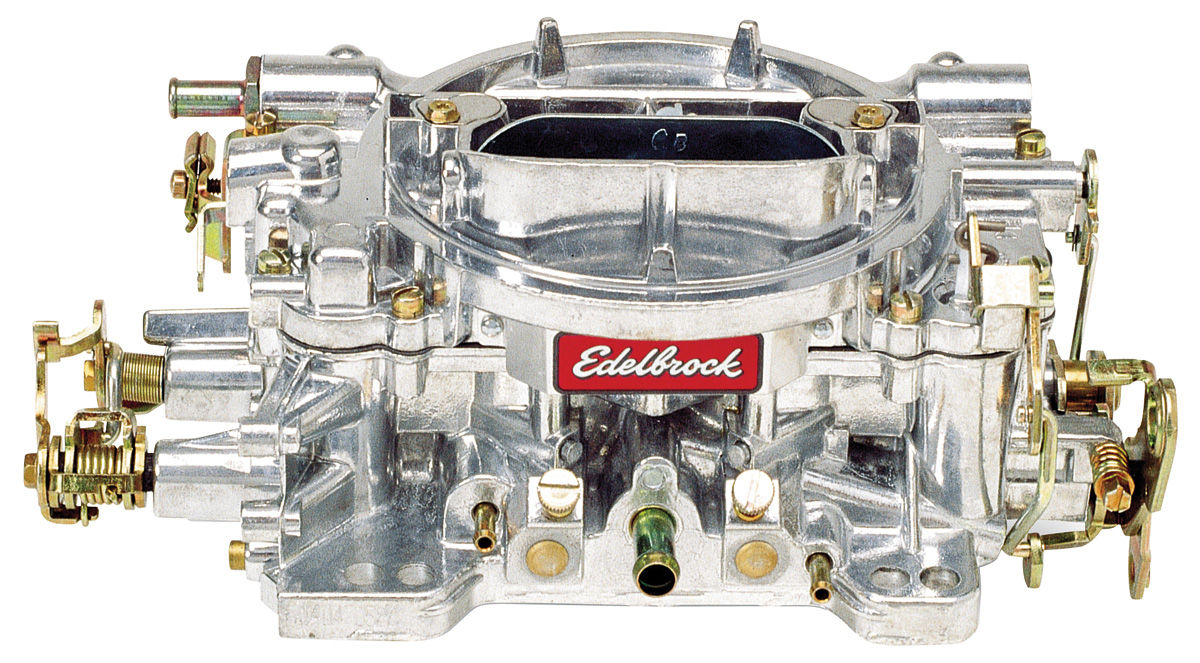

Universal 750-CFM Performer 4-Barrel Carburetor (Manual Choke) by Edelbrock®

750-CFM square-bore carburetor with manual choke and easily serviced metering-rod fuel calibration.

This 750-CFM Edelbrock® Performer four-barrel carburetor features an aluminum, square-bore body and a manual choke. Its metering rods provide fuel delivery adjustments without removing the carburetor or draining the bowls, and the two-piece body with rear-pivot floats helps maintain consistent fuel metering. It is designed for performance-oriented calibration for street/strip intake combinations. Timed and full-manifold vacuum ports allow appropriate ignition advance connections; confirm manifold flange, linkage, fuel inlet and engine requirements before installation. Satin aluminum and black finishes are offered. The manual-choke version is deliberately calibrated differently from the electric-choke 750-CFM model; do not substitute jetting data between them.

• 750 CFM, four-barrel square-bore flange • Manual choke and aluminum body • Factory metering jets: primary .113, secondary .107 • Factory metering rods: .071 x .047 • Timed and full-vacuum ignition ports • Non-EGR Performer series • Available finish is variant-specific
